> >>NEUTRIK NE8MX6-B ETHERCON CAT6A CABLE CONNECTOR BLACK SUITS SOLID AWG24-22 STRANDED AWG24/7-22/7

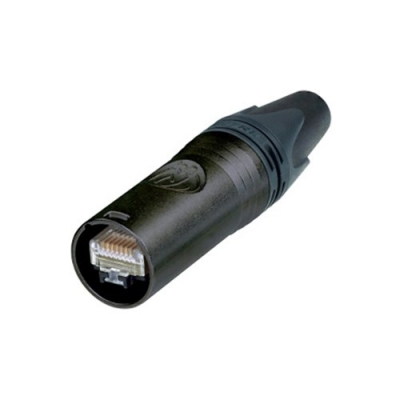

New NEUTRIK NE8MX6-B ETHERCON CAT6A CABLE CONNECTOR BLACK SUITS SOLID AWG24-22 STRANDED AWG24/7-22/7 View larger

NEUTRIK

NEUTRIK NE8MX6-B ETHERCON CAT6A CABLE CONNECTOR BLACK SUITS SOLID AWG24-22 STRANDED AWG24/7-22/7

NEUNE8MX6-B

NU-NE8MX6-B

New product

Balcatta: 0
Geebung: 0

NEUTRIK NE8MX6-B etherCON CAT6A Cable Connector Black - 7.0-9.5mm Cable OD

The NEUTRIK NE8MX6-B is a high-quality rugged etherCON CAT6A RJ45 cable connector designed for professional Ethernet networking in touring AV, broadcast, live sound, and installed systems. Built for self-termination on cables with insulation diameter 1.1-1.6mm, it supports cable outer diameters 7.0-9.5mm and wire gauges AWG24-22 solid or AWG24-22 stranded, using a robust zinc diecast metal shell with black KTL coating, gold-plated contacts, and Neutrik’s proven chuck-type strain relief to ensure secure termination and reliable signal integrity.

Ideal for high-performance CAT6A data links and Power over Ethernet applications, it delivers CAT6A component compliance to ISO IEC 11801 and TIA EIA 568-C.2, supports PoE++ to IEEE 802.3bt Type 4, and offers IP65 protection when mated with compatible NE8FDX-*6-W chassis connectors, making it a dependable choice for harsh environments and frequent handling. With a rugged latch-lock system rated for over 1000 mating cycles, it is intermateable with the etherCON CAT5 range and provides 1kVdc dielectric strength, >0.5GΩ insulation resistance, and 1.5A rated current per contact for stable long-term performance.

Key Features

  • CAT6A transmission performance with ISO IEC 11801 and TIA EIA 568-C.2 compliance for reliable high-speed Ethernet
  • Self-termination design for 7.0-9.5mm cable OD and AWG24-22 solid or stranded conductors with 1.1-1.6mm insulation diameter
  • Rugged zinc diecast metal shell with black KTL coating plus gold-plated contacts for durability and corrosion resistance
  • PoE++ compliant to IEEE 802.3bt Type 4 and IP65 protection when mated with NE8FDX-*6-W for demanding environments
  • Neutrik chuck-type strain relief and latch-lock system with >1000 mating cycles for secure field-ready connections
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
