> >>NEUTRIK NE8FDX-P6-B D-SIZE PANEL RECEPTACLE SHIELDED FEEDTHROUGH BLACK HOUSING
New NEUTRIK NE8FDX-P6-B D-SIZE PANEL RECEPTACLE SHIELDED FEEDTHROUGH BLACK HOUSING View larger

NEUTRIK

NEUTRIK NE8FDX-P6-B D-SIZE PANEL RECEPTACLE SHIELDED FEEDTHROUGH BLACK HOUSING

NEUNE8FDX-P6-B

NU-NE8FDX-P6-B

New product

Balcatta: 0
Geebung: 0

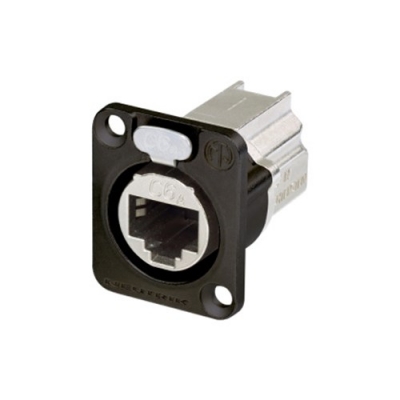

NEUTRIK NE8FDX-P6-B etherCON CAT6A Panel Connector Shielded Feedthrough Black Housing - D-size

The NEUTRIK NE8FDX-P6-B is a rugged CAT6A shielded D-shape panel feedthrough connector designed for professional Ethernet panel I-O in AV, touring, broadcast, industrial racks, and networked stage boxes. Built for 10 Gbit/s CAT6A component-level performance, it uses a shielded system for high noise immunity and strong EMI protection in electrically demanding installs.

Ideal for front-mounted panels and patch interfaces, it supports Power over Ethernet up to PoE Type 4 Class 8 (100W) per IEEE 802.3bt and delivers proven etherCON latch-lock reliability for secure connections in high-vibration environments. The black housing and black KTL-finished zinc diecast shell provide durable, installation-ready aesthetics, with compliance to ISO/IEC 11801-1 and IEC 60603-7-3; note it does not intermate with NE8MC6-MO CAT6 cable connector and NKE6S cables.

Key Features

  • CAT6A component compliant feedthrough for 10 Gbit/s transmission and high-performance panel networking
  • PoE Type 4 Class 8 up to 100W (IEEE 802.3bt) with rated voltage up to 57 V and 1.5 A per contact
  • Shielded D-size front-mount design with rugged etherCON latch-lock system for secure, reliable mating
  • UL 94 V-0 and EN 45545 R26 flammability with -40 C to +70 C operating temperature range
  • Durable construction with gold-plated contacts, zinc diecast (ZnAl4Cu1) shell, and black KTL coating for long service life over 1000+ mating cycles
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK/SILVER
