> >>NEUTRIK NE8FDX-Y6-B CAT6A D-SIZE PANEL RECEPTACLE SHIELDED IDC TERMINATION BLACK HOUSING

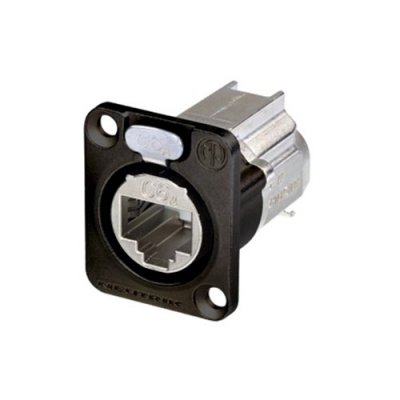

New NEUTRIK NE8FDX-Y6-B CAT6A D-SIZE PANEL RECEPTACLE SHIELDED IDC TERMINATION BLACK HOUSING View larger

NEUTRIK

NEUTRIK NE8FDX-Y6-B CAT6A D-SIZE PANEL RECEPTACLE SHIELDED IDC TERMINATION BLACK HOUSING

NEUNE8FDX-Y6-B

NU-NE8FDX-Y6-B

New product

Balcatta: 0
Geebung: 0

NEUTRIK NE8FDX-Y6-B etherCON CAT6A Panel Connector Shielded IDC - D-Size Black

The NEUTRIK NE8FDX-Y6-B is a ruggedized shielded CAT6A D-size panel receptacle designed for professional Ethernet connectivity in touring AV industrial networks and fixed installations. Using fast IDC termination for solid or stranded conductors, it delivers reliable high-speed performance with CAT6A component compliance to ISO-IEC 11801 and TIA-EIA 568-C.2 while maintaining full compatibility with the etherCON CAT5 panel ecosystem.

Ideal for high-noise environments and mission-critical network links, it provides excellent EMI protection and supports PoE type 3 class 6 up to 60 W per IEEE 802.3bt. With a proven latch-lock system rated for more than 1000 mating cycles and a wide -40 C to +70 C operating range, it is a dependable choice for racks stage boxes wall plates and broadcast infrastructure where durability and signal integrity matter.

Key Features

  • Shielded CAT6A D-size female panel receptacle with IDC termination for quick field wiring
  • CAT6A and Class EA channel performance per TIA-EIA 568C and ISO-IEC 11801 for high-speed Ethernet
  • Supports PoE type 3 class 6 60 W per IEEE 802.3bt for powered network devices
  • High noise immunity with full shielding plus UL 94 V-0 and EN 45545 R26 flammability compliance
  • Front-mount latch-lock design with gold-plated contacts rated over 1000 mating cycles in a black KTL plated zinc diecast shell
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
