> >>NEUTRIK NE8FDX-Y6 CAT6A D-SIZE PANEL RECEPTACLE SHIELDED IDC TERMINATION NICKEL HOUSING

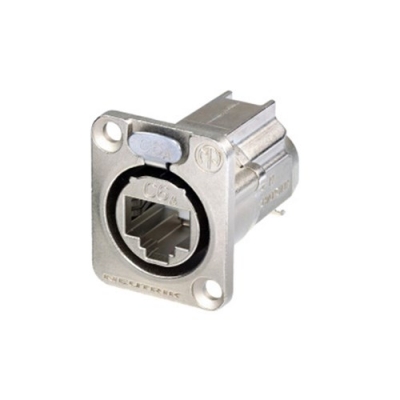

New NEUTRIK NE8FDX-Y6 CAT6A D-SIZE PANEL RECEPTACLE SHIELDED IDC TERMINATION NICKEL HOUSING View larger

NEUTRIK

NEUTRIK NE8FDX-Y6 CAT6A D-SIZE PANEL RECEPTACLE SHIELDED IDC TERMINATION NICKEL HOUSING

NEUNE8FDX-Y6

NU-NE8FDX-Y6

New product

Balcatta: 0
Geebung: 0

NEUTRIK NE8FDX-Y6 etherCON NE8FDX-Y6 CAT6A D-Size Shielded Panel Connector - IDC Termination - Nickel Housing

The NEUTRIK NE8FDX-Y6 is a high-quality shielded CAT6A D-shape panel connector designed for rugged Ethernet networking in professional audio, lighting, broadcast, and industrial AV installations. Featuring IDC termination and a nickel-plated zinc diecast housing, it delivers high-noise immunity and EMI protection while supporting CAT6A component compliance to ISO/IEC 11801 and TIA/EIA 568C channel specifications for dependable high-speed data performance.

Ideal for patch panels, stage boxes, wall plates, and equipment racks, it uses a proven latch-lock system and is intermateable with the existing etherCON CAT5 range. It supports PoE type 3 class 6 up to 60 W (IEEE 802.3bt) with ≤57 V rating, offers >1000 mating cycles, meets UL 94 V-0 and EN 45545 R26 requirements, and operates from -40 °C to +70 °C for demanding fixed-install and touring environments.

Key Features

  • Shielded CAT6A D-size female panel connector with IDC termination for fast reliable field wiring
  • Transmission performance: CAT6A per TIA/EIA 568C channel specs and Class EA per ISO/IEC 11801 channel specs
  • Rugged nickel-plated zinc diecast shell with gold-plated contacts for strong durability and signal integrity
  • PoE type 3 class 6 60 W support per IEEE 802.3bt plus 1 kVdc dielectric strength and >0.5 GΩ insulation resistance
  • Front mounting latch lock design with >1000 mating cycles and wide wire compatibility solid AWG 26-22 and stranded AWG 26-22
  • PRODUCT TYPE CONNECTORS
  • COLOR SILVER
