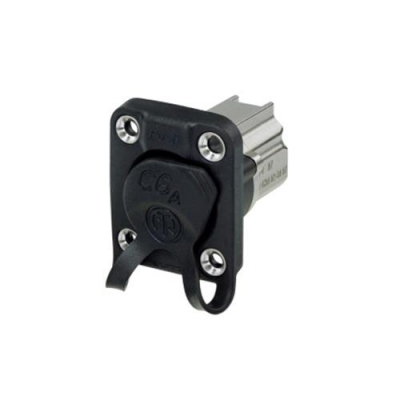

NEUTRIK NE8FDX-Y6-W CAT6A CHASSIS CONNECTOR IDC TERMINATION IP65 SEALING KIT

NEUNE8FDX-Y6-W

NU-NE8FDX-Y6-W

New product

Balcatta: 0
Geebung: 0

NEUTRIK NE8FDX-Y6-W D-shape CAT6A Panel Connector Shielded IDC-IP65

The NEUTRIK NE8FDX-Y6-W is a ruggedized CAT6A/Class EA etherCON-style panel connector designed for reliable Ethernet networking in demanding stage, broadcast, industrial, and outdoor installations. Featuring shielded construction, gold-plated contacts, and IDC termination for solid or stranded conductors, it delivers high noise immunity and strong EMI protection for stable high-speed data transmission.

Ideal for mission-critical PoE and data links, it supports PoE Type 3 Class 6 up to 60 W (IEEE 802.3bt), provides IP65 ingress protection when mated (and when unmated with the sealing cap closed), and uses a proven latch-lock system for secure connectivity in harsh environments. It meets key channel performance and safety standards including TIA/EIA 568C CAT6A, ISO/IEC 11801 Class EA, UL 94 V-0 flammability, and operates from -40 °C to +70 °C.

Key Features

  • CAT6A/Class EA channel performance for high-speed Ethernet links
  • Shielded zinc diecast shell with gold-plated contacts for EMI protection and durability
  • IDC termination for AWG 26-22 solid or stranded conductors with 0.85-1.6 mm insulation diameter
  • IP65 sealing in mated condition plus UL 94 V-0 and EN 45545 R26 compliance
  • Front-mount D-shape panel format with latch-lock system and >1000 mating cycles rated life
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK/SILVER
