> >>NEUTRIK ETHERCON CAT6A CABLE CONNECTOR SUIT THIN CONDUCTORS

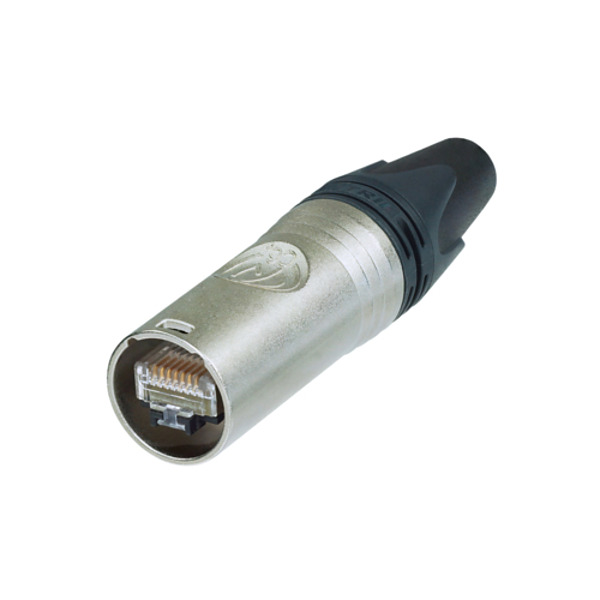

etherCON Large O.D CAT6A Cable Connector View larger

NEUTRIK

NEUTRIK ETHERCON CAT6A CABLE CONNECTOR SUIT THIN CONDUCTORS

NEUNE8MX6-T

NU-NE8MX6-T

New product

NEUTRIK ETHERCON LARGE O.D CAT6A CABLE CONNECTOR

More details

Balcatta: 0
Geebung: 0

NU-NE8MX6-T Neutrik etherCON CAT6A Self-Termination Cable Connector - Nickel Thin-Insulation Version

The NU-NE8MX6-T is the Neutrik NE8MX6-T etherCON CAT6A cable connector set for self-terminating ruggedised RJ45 cable assemblies with thin conductor insulation. It combines a cable plug carrier, robust metal shell, CAT6A-compliant RJ45 plug and Neutrik chuck-type strain relief, with nickel shell plating and support for insulation diameters greater than 0.85 mm to 1.10 mm.

Built for professional network cabling, this male etherCON connector suits 7.0 mm to 9.5 mm cable outer diameters and wire sizes from AWG26/1 to AWG22/1 solid or AWG27/7 to AWG22/7 stranded. CAT6A transmission performance, PoE+ support to IEEE 802.3at, latch locking and IP65 protection when used with NE8FDX-6-W connectors make it a practical choice for robust powered data links.

Key Features

  • Supports self-terminated CAT6A cable assemblies for site-made data leads and repairs.
  • Helps keep terminations secure through the metal plug carrier and chuck-type strain relief.
  • Fits the specified thin-insulation conductor range for use with smaller insulated wires.
  • Provides positive latch locking for connections handled through repeated professional use.
  • Enables powered data connections with PoE+ support and IP65 protection in the specified mating setup.
  • Colour Silver
  • IP Rating IP65
  • Operating Temperature suits -40 °C to +70 °C
  • Outside Diameter Suits Cable Diametre 7.0 mm - 9.5 mm
  • Warranty 3 Years
  • PRODUCT TYPE CONNECTORS
  • COLOR SILVER
