> >>>EV EVL-EVID-S5.2XW EVID-S 5.25" 2-WAY FULL RANGE 100V LINE 60W IP65 OUTDOOR 8 OHM WALL MOUNTED SURFACE MOUNT SPEAKER PAIR WHITE
5” Wall Mount Outdoor Speaker (Pair) - 75 Watt View larger

ELECTROVOICE

EV EVL-EVID-S5.2XW EVID-S 5.25" 2-WAY FULL RANGE 100V LINE 60W IP65 OUTDOOR 8 OHM WALL MOUNTED SURFACE MOUNT SPEAKER PAIR WHITE

ELEEVID-S-5.2XW

EVL-EVID-S5.2XW

New product

EV 5 WALL MOUNT OUTDOOR SPEAKER (PAIR) - 75 WATT

More details

Balcatta: 0
Geebung: 0

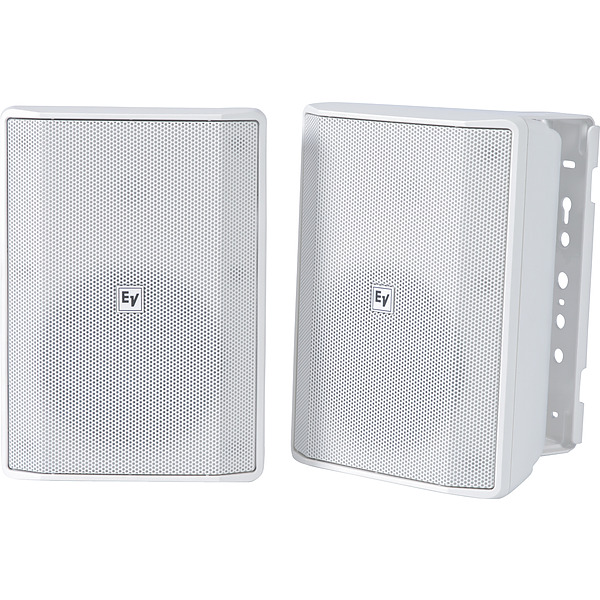

ELEEVID-S-5.2XW Electro-Voice 5.25-Inch Two-Way Surface-Mount Speakers 70/100 V IP65 - White Pair

The Electro-Voice EVID-S5.2XW is supplied as a pair of white 5.25-inch two-way full-range surface-mount loudspeakers with internal 60 W transformers. Each speaker combines a weather-resistant polypropylene-cone woofer with a waveguide-coupled 20 mm ferrofluid-cooled high-frequency driver, while selectable 70 V and 100 V taps and an 8-ohm bypass support different system designs.

Engineered for demanding indoor and outdoor environments, the IP65-rated enclosure provides resistance against sun, salt, moisture and chlorine. A marine-grade aluminium grille, adjustable marine-grade aluminium U-bracket and input cover complete the mounting package for exposed surface installations.

Key Features

  • 90 Hz to 20 kHz frequency response supports wide-range installed audio reproduction
  • 90° horizontal and vertical coverage promotes even sound distribution
  • Suitable for background and foreground music, voice evacuation, paging and sound reinforcement
  • RAL 9003 white finish provides a coordinated appearance for visible installations
  • Compact 255 mm x 180 mm x 148 mm cabinet and 3.2 kg weight support space-efficient positioning
  • Colour White
  • Dimensions (H x W x D) 255 x 180 x 148 mm
  • Frequency Response 55 Hz – 20 kHz1 (-10 dB)
  • Impedance 8 ohm
  • IP Rating IP65
  • Maximum SPL 108 dB
  • Power Rating 75 watt (RMS) 300 watt (Peak)
  • Sensitivity 89 dB
  • Transformer Taps 60 , 30 , 15 Watt & 8 Ohm
  • Warranty 3 Years
  • Weight 3.2 Kg
  • PRODUCT TYPE SURFACE MOUNT SPEAKER
  • Brand EV
  • Config 2-WAY FULL RANGE
  • Driver Size 5.25"
  • Power Type 70V/100V LINE
  • Mount Type WALL MOUNTED
  • SPL (DB) 108
  • Dispersion Angle 90H X 90V
  • Voice Coil Size 1"
  • Input Connector REMOVABLE LOCKING 4-PIN CONNECTOR
  • Peak Power (W) 300W
  • Weight (kg) 3.2 KG
  • HF Driver Size 0.75"
  • LF Driver Size 5.25"
  • Enclosure FIRE RATED ABS PLASTIC
  • Max SPL (dB) 114 DB
  • Hertz 90-20000HZ (-10dB)
  • Max Wattage 75W
  • Max 100V Tap (W) 60W
  • 100V Taps List 60W; 30W; 15W; 8 OHM
  • Max 70V Tap (W) 60W
  • 70V Taps List 60W; 30W; 15W; 7.5W; 8 OHM
  • Unit Dimensions (mm) 255H x 180W x 148D
  • Pair PAIR
  • Program Power (W) 75W
  • Series EVID-S
