5” Wall Mount Outdoor Speaker (Pair) - 75 Watt View larger

5” Wall Mount Outdoor Speaker (Pair) - 75 Watt

EV EVID-S 5.2XB

New product

5” Wall Mount Outdoor Speaker (Pair) - 75 Watt

More details

Totally Sound Bunbury 9725 4599 www.totallysound.com.au
Linked Integration Parkwood 0412 757 966 www.linkedintegration.com.au
Stage & Studio Productions East Vic Park 6161 9704 www.stageandstudio.com.au
PAV – Sales and Install Bayswater 9378 0888 www.pav.com.au/shop
Technical Alliance Osborne Park 1300 650 144 www.technicalalliance.com.au
Concept Audio Visual West Perth 9429 4333 www.conceptav.com.au

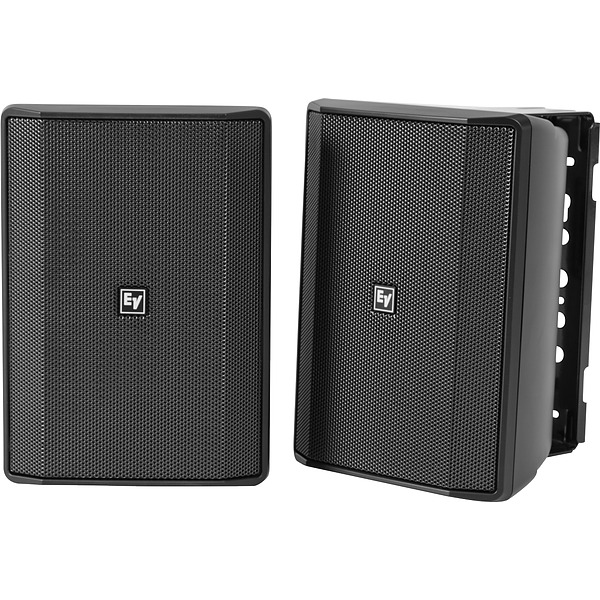

The EVID-S5.2X, from Electro-Voice, is a high performance, two way, full range, 5.25" (133 mm) surface mount speaker with excellent wide, uniform dispersion, and outstanding performance. It is designed for background and foreground music, voice evacuation, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others. With unparalleled ease of installation, exceptional weather resistance, modern and delicate look, and its flexible mounting options, the EVID-S5.2X is the perfect solution for a wide variety of surface mount applications.

The EVID-S5.2X has been carefully engineered to resist the toughest weather conditions, without compromising on performance for indoor applications. The full range speaker is IP65 rated, and its weather proofing is complemented with exceptional cabinet and grille resistance against sun, salt, moisture, and chlorine.

The EVID-S5.2X includes a versatile U-Bracket that has been designed with the installer in mind, allowing for a wide range of installation applications. The U-Bracket allows for 80 degrees of rotation.

The EVID-S5.2X Utilizes a 60W transformer, that offers a selection of 7.5W (70V only), 15W, 30W or 60W delivered to the speaker system using either 70V or 100V lines, or 8Ω bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker.

The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in wall speakers.

Features

  • Carefully engineered for the toughest weather conditions (IP65)
  • Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for extended LF performance down to 55 Hz
  • U Bracket made from aircraft grade aluminium
  • Powerful 60w 100v line transformer
  • Colour Black
  • Dimensions (H x W x D) 255 x 180 x 148 mm
  • Frequency Response 55 Hz – 20 kHz1 (-10 dB)
  • Impedance 8 ohm
  • Maximum SPL 108 dB
  • Power Rating 75 watt (RMS) 300 watt (Peak)
  • Sensitivity 89 dB
  • Transformer Taps 60 , 30 , 15 Watt & 8 Ohm
  • Warranty 3 Years
  • Weight 3.2 Kg
