EUROCABLE LKSS24C 24CH COPPER SPIRAL SHIELD MULTIPAIR AUDIO MIC CABLE PER METER
EURLKSS24C
LKSS24C
New product

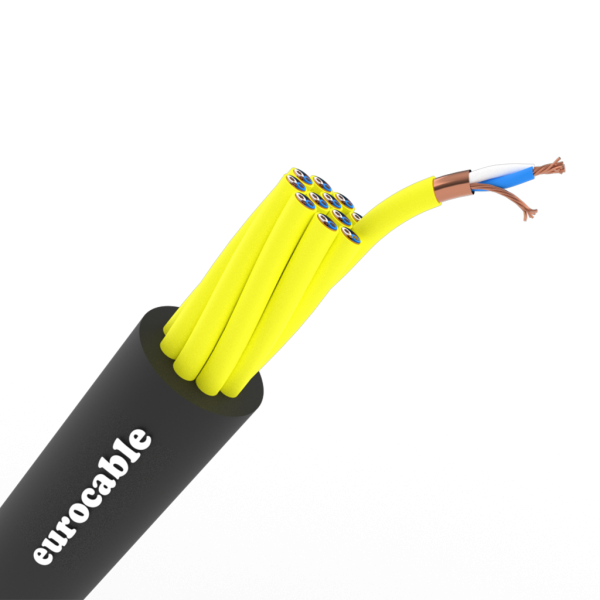

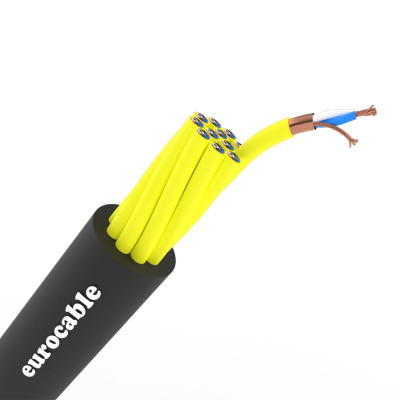

LKSS24C Eurocable SS Spiral Copper Shield Multipair Mic Cable 24CH - Per Meter
The LKSS24C is a high-quality 24-channel multipair audio microphone cable designed for professional stage, touring, broadcast, and fixed-install signal transport. Measuring 20.3 mm overall diameter, it features 24 individually shielded twisted pairs with annealed bare copper conductors (0.22 mm2 24 AWG, 28 x 0.10 mm) and XLPE insulation for low capacitance and excellent heat resistance during soldering.
Ideal for outdoor and critical-use applications where flexibility and long flex life matter, it uses a bare copper spiral shield with over 95 percent coverage plus a 24 AWG tinned copper drain wire and an extra-flexible PVC jacket for anti-abrasion and anti-treading performance. It delivers stable audio performance with 100 pF/m conductor-to-conductor capacitance and 0.20 dB/100 m attenuation at 1 kHz, operates from -20 C to +70 C, and is intended for low-voltage audio circuits up to 50 V AC or 75 V DC.
Key Features
- 24 x 2 individually shielded twisted pairs for clean low-noise multichannel mic and line-level audio
- Annealed bare copper conductors 0.22 mm2 24 AWG with XLPE insulation for low capacitance and high-temperature resistance
- Bare copper spiral shield plus 24 AWG tinned copper drain wire with greater than 95 percent coverage for strong EMI and RFI rejection
- Extra-flexible PVC jacket rated -20 C to +70 C for touring durability with anti-abrasion and anti-treading protection
- Supplied per meter for custom snakes fan-in fan-out looms and studio infrastructure builds
- PRODUCT TYPE AUDIO CABLE
- COLOR BLACK
EURLKSS24C_fds_1
