> >>>EUROCABLE LKSS48C 48CH COPPER SPIRAL SHIELD MULTIPAIR AUDIO MIC CABLE PER METER
New EUROCABLE LKSS48C 48CH COPPER SPIRAL SHIELD MULTIPAIR AUDIO MIC CABLE PER METER View larger

EUROCABLE

EUROCABLE LKSS48C 48CH COPPER SPIRAL SHIELD MULTIPAIR AUDIO MIC CABLE PER METER

EURLKSS48C

LKSS48C

New product

Balcatta: 0
Geebung: 0

LKSS48C Eurocable SS Spiral Copper Shield Multipair Mic Cable 48CH - Per Meter

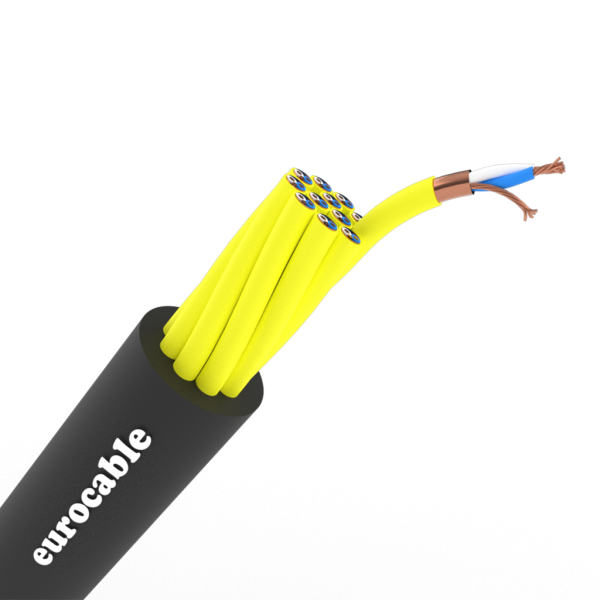

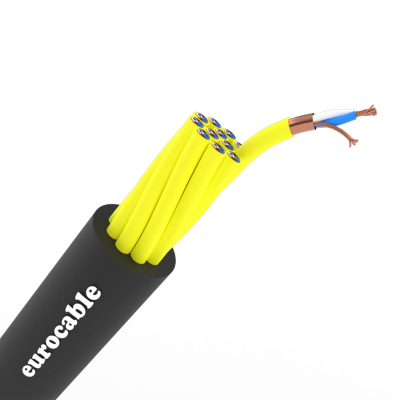

The LKSS48C is a high-quality 48-channel multipair audio microphone cable designed for professional touring, live sound, broadcast, and studio installations where maximum channel count and clean signal integrity are essential. With a 27.8 mm overall diameter, it features 48 individually shielded twisted pairs using annealed bare copper conductors (0.22 mm2 24 AWG, 28 x 0.10 mm) with XLPE insulation to deliver low capacitance performance and excellent heat resistance for reliable termination and soldering.

Ideal for demanding outdoor and critical-use snake systems, the LKSS48C uses a bare copper spiral shield with over 95 percent coverage plus a 24 AWG tinned copper drain wire per pair to reduce EMI and RFI noise in high-interference environments. An extra-flexible PVC outer jacket provides long flex life with anti-abrasion and anti-treading durability, supports continuous winding and unwinding on cable reels, and operates from -20 C to +70 C. Engineered for low-voltage audio circuits, it is not suitable for applications above 50 V AC or 75 V DC, making it a dependable choice for professional mic and line-level multichannel audio runs.

Key Features

  • 48 x 2 individually shielded twisted pairs for high-density multichannel microphone and audio line distribution
  • Annealed bare copper conductors 0.22 mm2 24 AWG with XLPE insulation for low capacitance and stable audio clarity
  • Bare copper spiral shield plus 24 AWG tinned copper drain wire with greater than 95 percent coverage for strong interference rejection
  • Extra-flexible PVC jacket rated -20 C to +70 C for touring-grade durability and long flex life with anti-abrasion protection
  • Sold per meter for custom audio snakes, fan-in fan-out looms, patch systems, and fixed-install infrastructure
  • PRODUCT TYPE AUDIO CABLE
  • COLOR BLACK
