> >>>EUROCABLE LKMF32P 32-PAIR ANALOG AES DMX SHIELDED AUDIO CABLE BLACK
New EUROCABLE LKMF32P 32-PAIR ANALOG AES DMX SHIELDED AUDIO CABLE BLACK View larger

EUROCABLE

EUROCABLE LKMF32P 32-PAIR ANALOG AES DMX SHIELDED AUDIO CABLE BLACK

EURLKMF32P

LKMF32P

New product

Balcatta: 0
Geebung: 0

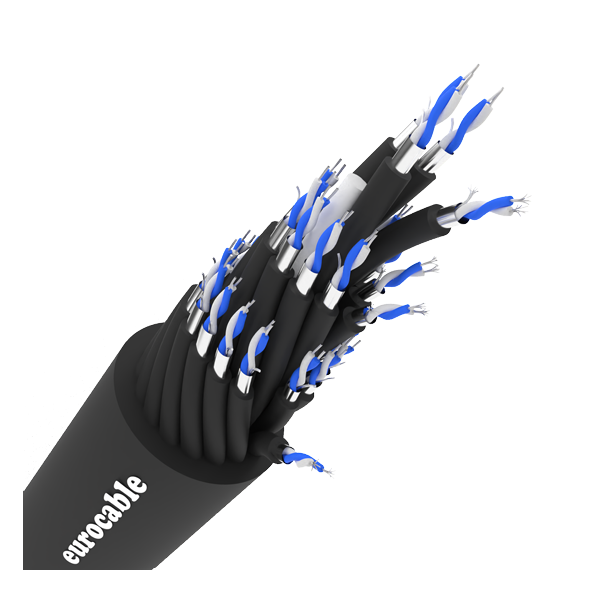

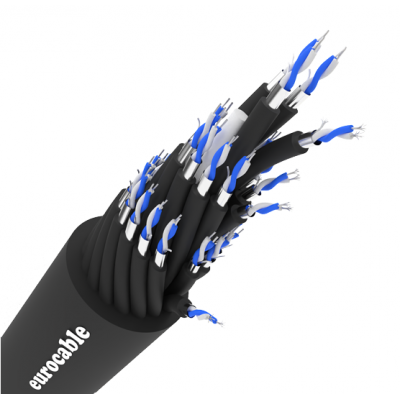

LKMF32P Eurocable 32 Pair Analog AES DMX Shielded Audio Cable Black

The LKMF32P is a high-quality 32-pair analog and digital audio multicore cable built for professional AES/EBU signals, DMX512 lighting control, and balanced audio distribution in touring systems, venues, and permanent installations. Measuring 24.6 mm overall diameter, it features 24 AWG conductors (0.22 mm2, 7-strand electrolytic tinned copper) with polyethylene insulation to support consistent transmission performance, clean audio detail, and dependable digital control over long cable runs.

Ideal for high-channel-count stage boxes, patch panels, FOH infrastructure, and integrated sound and lighting systems, each pair is individually shielded with Al/PET tape and a tinned copper drain wire to help minimise EMI and RFI interference and reduce crosstalk in electrically noisy environments. A black fire-retardant PVC jacket with 1.8 mm nominal thickness improves durability and installation safety, while a -20 C to +70 C operating range and a 12x O.D. bending radius ensure reliable handling and long service life. Rated to 300 Vac with a 2500 Vac test voltage and aligned with recognised standards, it is supplied on 200 m reels for efficient professional deployment.

Key Features

  • 32-pair multicore design for analog audio AES digital audio and DMX control in professional production and installation workflows
  • Electrolytic tinned copper conductors 24 AWG 0.22 mm2 7-strand for flexibility strong terminations and reliable conductivity
  • Individually tape-shielded pairs with Al/PET plus tinned copper drain wires for interference rejection and reduced crosstalk
  • Fire-retardant black PVC jacket 1.8 mm thick with -20 C to +70 C rating and 12x O.D. bend radius for touring and install durability
  • Pro electrical specs including 72 pF/m pair capacitance 102 ohm nominal impedance and 200 m reel packaging
  • PRODUCT TYPE AUDIO CABLE
  • COLOR BLACK
