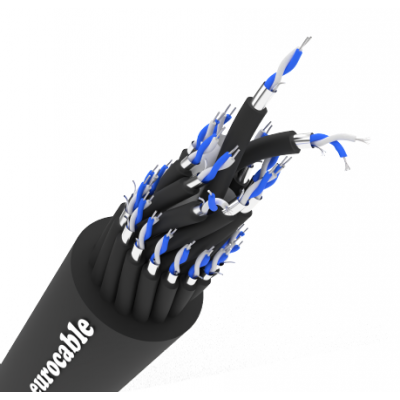

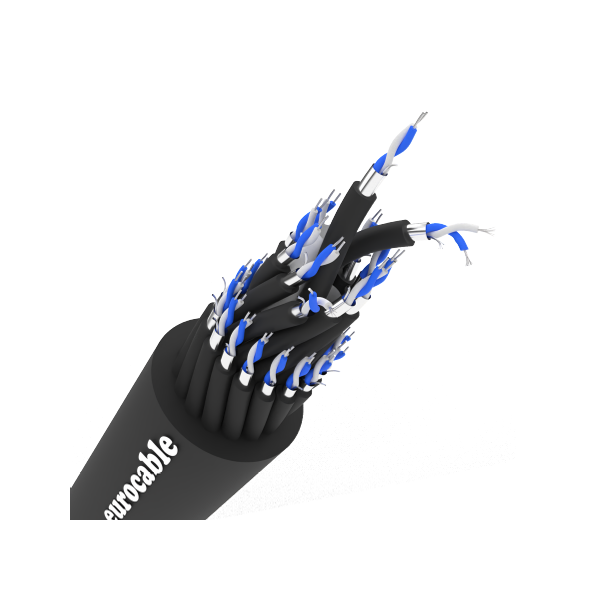

LKMF28P Eurocable 28 Pair Analog AES DMX Shielded Audio Cable Black

The LKMF28P is a high-quality 28-pair analog and digital audio multicore cable engineered for professional AES/EBU, DMX512 lighting control, and balanced line-level audio distribution in touring rigs, venues, and fixed installations. Measuring 23.6 mm overall diameter, it features 24 AWG conductors (0.22 mm2, 7-strand electrolytic tinned copper) with polyethylene insulation to support consistent transmission characteristics, dependable termination, and clean low-noise performance across high-channel-count systems.

Ideal for stage boxes, patch bays, control rooms, and integrated sound lighting infrastructure, each pair is individually shielded with Al/PET tape and a tinned copper drain wire to reduce EMI RFI interference and minimise crosstalk in electrically busy environments. A black fire-retardant PVC outer jacket with 1.8 mm nominal thickness adds rugged mechanical protection and improved safety compliance, while a -20 C to +70 C operating range and 12x O.D. bend radius ensure practical handling for installs and mobile production. Rated to 300 Vac with a 2500 Vac test voltage and aligned with recognised standards, it is supplied on 200 m reels for efficient large-scale deployment.

Key Features

  • 28-pair multicore for analog audio AES digital audio and DMX control cabling in professional production systems
  • Electrolytic tinned copper conductors 24 AWG 0.22 mm2 7-strand for flexibility reliable terminations and long service life
  • Individually tape-shielded pairs with Al/PET plus tinned copper drain wires for strong noise rejection and reduced crosstalk
  • Fire-retardant black PVC jacket 1.8 mm thick with -20 C to +70 C rating and 12x O.D. bend radius for touring and install durability
  • Pro-grade electrical specs including 72 pF/m pair capacitance 102 ohm nominal impedance and 200 m reel packaging
  • PRODUCT TYPE AUDIO CABLE
  • COLOR BLACK
