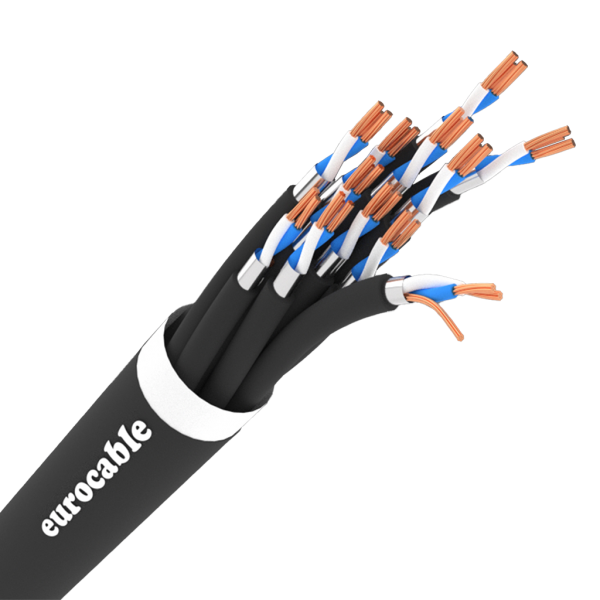

LKMF12P 12-Pair Shielded Analog & Digital Audio/DMX Cable

The LKMF12P is a professional-grade 12-pair multipair cable designed for analog audio, digital AES/EBU, and DMX signal transmission. Each pair consists of 24 AWG (0.22 mm) flexible tinned copper conductors, individually shielded with aluminum-polyester tape and a drain wire, ensuring optimal signal integrity and minimal crosstalk. The cable's robust construction makes it suitable for both fixed installations and mobile setups in live sound, broadcasting, and studio environments.

Encased in a fire-retardant black PVC jacket with a 16 mm outer diameter, the LKMF12P offers durability and flexibility. It complies with UL 1581, IEC 60332-3-24 Cat.C, and the Low Voltage Directive 2014/35/EU, ensuring safety and performance standards are met. The cable operates effectively within a temperature range of -20C to +70C and is rated for 300 VAC with a test voltage of 2500 VAC.

Key Features

  • 12 individually shielded pairs of 24 AWG (0.22 mm) tinned copper conductors
  • Aluminum-polyester tape shielding with drain wire for each pair
  • Fire-retardant black PVC jacket with 16 mm outer diameter
  • Electrical characteristics: 72 pF/m conductor-to-conductor capacitance, 102 ohm nominal impedance
  • Compliant with UL 1581, IEC 60332-3-24 Cat.C, and Low Voltage Directive 2014/35/EU
  • PRODUCT TYPE AUDIO CABLE
