> >>>EUROCABLE LKMF08P 8-PAIR ANALOG AES DMX SHIELDED AUDIO CABLE BLACK
New EUROCABLE LKMF08P 8-PAIR ANALOG AES DMX SHIELDED AUDIO CABLE BLACK View larger

EUROCABLE

EUROCABLE LKMF08P 8-PAIR ANALOG AES DMX SHIELDED AUDIO CABLE BLACK

EURLKMF08P

LKMF08P

New product

Balcatta: 0
Geebung: 0

LKMF08P Eurocable 8 Pair Analog AES DMX Shielded Audio Cable Black

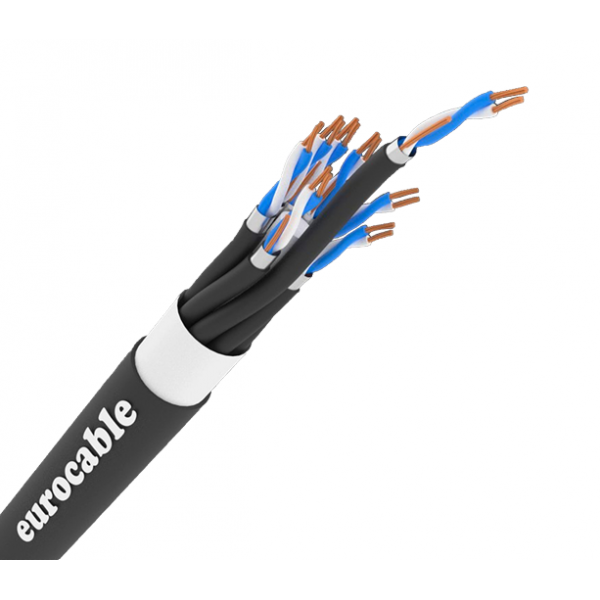

The LKMF08P is a high-quality 8-pair analog and digital audio cable designed for professional AES/EBU, DMX512 lighting control, and balanced audio multicore installations. Measuring 13.5 mm overall diameter, it features flexible electrolytic tinned copper conductors (24 AWG 0.22 mm2, 16 conductors, 7-strand) with 1.25 mm insulation O.D. to deliver consistent impedance and reliable signal transfer for stage, touring, broadcast, and fixed-install use.

Ideal for noise-sensitive environments, each pair is shielded with Al/PET tape and a tinned copper drain wire for strong EMI and RFI rejection, while the fire-retardant PVC outer jacket in black adds rugged protection and improved safety in venues and commercial builds. Rated to 300 Vac with 2500 Vac test voltage, it supports stable performance from -20 C to +70 C with a minimum bending radius of 12x O.D., complies with key safety standards, and ships on 500 m reels for efficient cable management and large-system deployments.

Key Features

  • 8-pair construction for analog audio, AES digital audio, and DMX control runs in one professional multicore
  • Flexible tinned copper conductors 24 AWG 0.22 mm2 for dependable connectivity and easy handling
  • Individually tape-shielded pairs with Al/PET plus tinned copper drain wire to reduce interference and crosstalk
  • Fire-retardant black PVC jacket with -20 C to +70 C operating range and 12x O.D. bending radius for touring and install durability
  • Electrical performance tuned for pro systems including 72 pF/m pair capacitance 102 ohm nominal impedance and 500 m reel supply
  • PRODUCT TYPE AUDIO CABLE
  • COLOR BLACK
