> >>>EUROCABLE LKMF16P 16-PAIR ANALOG AES DMX SHIELDED AUDIO CABLE BLACK
New EUROCABLE LKMF16P 16-PAIR ANALOG AES DMX SHIELDED AUDIO CABLE BLACK View larger

EUROCABLE

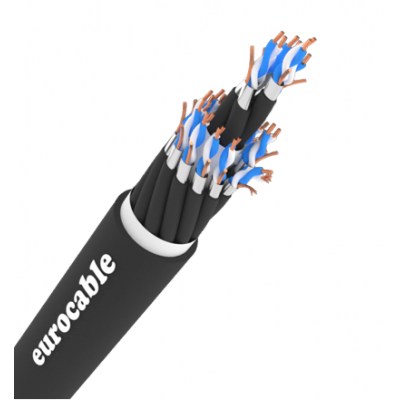

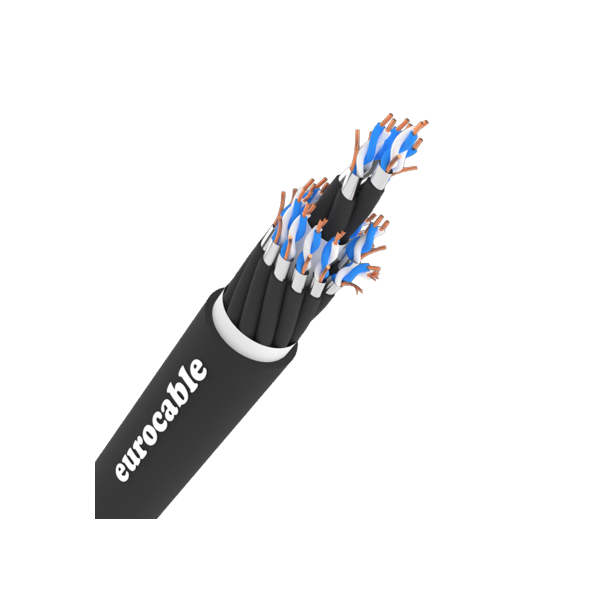

EUROCABLE LKMF16P 16-PAIR ANALOG AES DMX SHIELDED AUDIO CABLE BLACK

EURLKMF16P

LKMF16P

New product

Balcatta: 0
Geebung: 0

LKMF16P Eurocable 16 Pair Analog AES DMX Shielded Audio Cable Black

The LKMF16P is a high-quality 16-pair analog and digital audio cable engineered for professional AES/EBU, DMX512 lighting control, and balanced audio multicore systems in touring, broadcast, and fixed-install environments. Measuring 18 mm overall diameter, it uses flexible electrolytic tinned copper conductors (24 AWG 0.22 mm2, 32 conductors, 7-strand) with precision insulation to support dependable signal flow, clean audio, and consistent digital transmission across longer runs.

Ideal for high-channel-count racks, stage boxes, and venue infrastructure, each pair is protected by an Al/PET tape shield with a tinned copper drain wire to reduce interference, crosstalk, and noise in electrically busy setups. A black fire-retardant PVC jacket adds rugged protection and improved safety for professional installations, while a -20 C to +70 C operating range and 12x O.D. bending radius ensure reliable handling and long service life. Rated to 300 Vac with a 2500 Vac test voltage and aligned with recognized safety standards, it is supplied on 500 m reels for efficient large-project deployment.

Key Features

  • 16-pair multicore design for analog audio AES digital audio and DMX control in professional sound and lighting systems
  • Flexible tinned copper conductors 24 AWG 0.22 mm2 7-strand for easy routing and dependable terminations
  • Individually tape-shielded pairs with Al/PET plus tinned copper drain wires for strong EMI and RFI noise rejection
  • Fire-retardant black PVC jacket with -20 C to +70 C operating range and 12x O.D. bend radius for touring and install durability
  • Electrical performance for pro workflows including 72 pF/m pair capacitance 102 ohm nominal impedance and 500 m reel packaging
  • PRODUCT TYPE AUDIO CABLE
  • COLOR BLACK
