> >>CANARE BP-C3 50 OHM BNC CRIMP PLUG FOR 3D-2V / L-3D2V
New CANARE BP-C3 50 OHM BNC CRIMP PLUG FOR 3D-2V / L-3D2V View larger

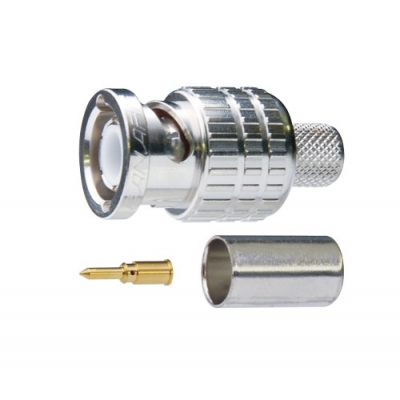

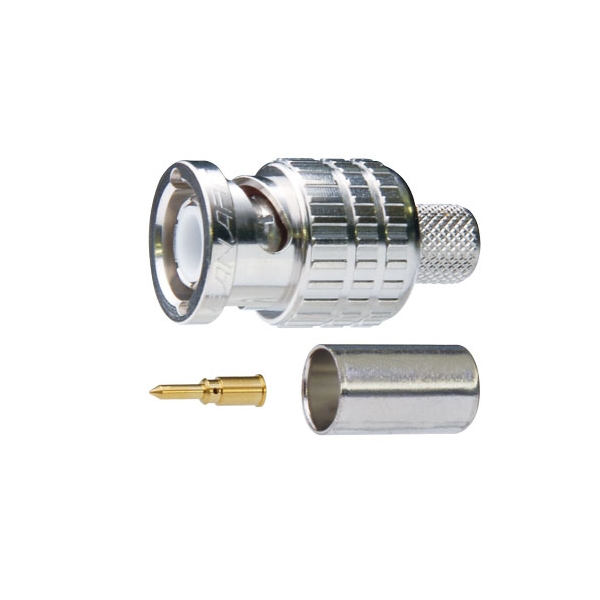

CANARE BP-C3 50 OHM BNC CRIMP PLUG FOR 3D-2V / L-3D2V

CANCA-BP-C3

CA-BP-C3

New product

Balcatta: 0
Geebung: 0

Canare BP-C3 50 Ohm BNC Crimp Plug for 3D-2V-L-3D2V - 100 Pack

The CA-BP-C3 is a high-quality crimp type 50 Ohm BNC plug designed for reliable RF video and broadband signal termination on 3D-2V and Canare L-3D2V coaxial cables. Built to JIS C 5412 and rated for 50 unbalanced systems, it supports low-loss performance up to 4 GHz with a VSWR of 1.1 or less (DC to 2 GHz) and 1.2 or less (DC to 4 GHz) for clean, stable transmission.

Ideal for broadcast, CCTV, test instrumentation, and professional AV installations, it delivers dependable connectivity with strong mechanical retention (196 N or more cable connecting force for 3D-2V) and long service life (5000 mating cycles). With an operating range of -40°C to +120°C and salt-mist corrosion resistance, it’s a rugged choice for demanding environments, and it is designed for use with Canare TC-1 frame and TCD-35D die crimp tooling.

Key Features

  • Crimp type 50 Ohm BNC plug for 3D-2V (JIS C 3501) and Canare L-3D2V coax
  • Meets JIS C 5412 with 50 unbalanced nominal impedance
  • Broadband performance: VSWR 1.1 or less (DC-2 GHz) and 1.2 or less (DC-4 GHz)
  • Durable and secure: 196 N or more pull strength and 5000-cycle mating endurance
  • Packaging: 100 pcs per package for efficient production and field installation
  • PRODUCT TYPE CRIMP CONNECTOR
  • COLOR SILVER
