NEUTRIK NU-NBNC75BTU11 MALE METAL BLK/ SIL
NEUNBNC75BTU11
NU-NBNC75BTU11
New product
Balcatta: 0
Geebung: 0

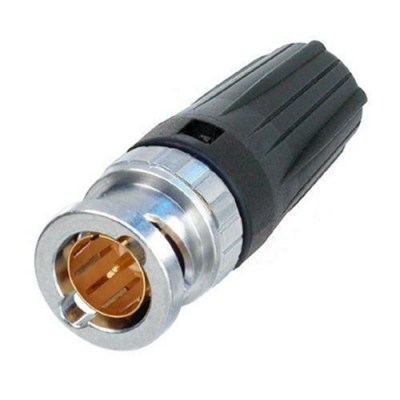

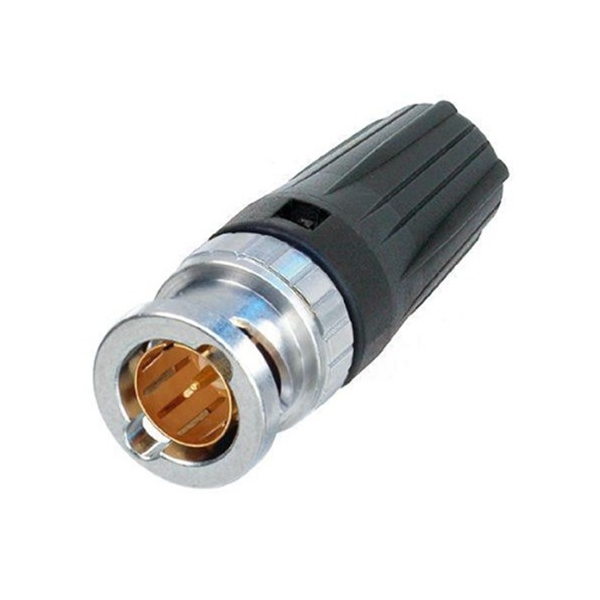

NU-NBNC75BTU11 Neutrik rearTWIST HD 75 Ohm Male BNC Cable Connector - Black Silver
The NU-NBNC75BTU11 is a Neutrik male rearTWIST HD BNC cable connector with a true 75 ohm design for HD video applications. Its black soft-touch rearTWIST boot allows the bayonet connection to be locked or released from the rear for access in high-density installations and recessed bulkheads.
The connector features a machined brass shell with Optalloy plating, PTFE insert and jacket-crimp cable anchoring. It supports compatible cables with a 7.3 mm outer diameter and provides more than 30 N cable retention with a rated mechanical life exceeding 1000 mating cycles.
Key Features
- Rear-operated locking and unlocking mechanism
- True 75 ohm impedance for HD video applications
- Stabilising leading area for contact protection
- Snug-fit centre pin insert
- Combined shield and jacket crimp construction
- Material Metal
- Warranty 24 Months
- COLOR BLACK/SILVER
- Brand NEUTRIK
- Connectors MALE
NEUNBNC75BTU11_ds_1
