NEUTRIK NU-NC3MXX-D 100-PIECE DISASSEMBLED BULK PACK OF NC3MXX
NEUNC3MXX-D
NU-NC3MXX-D
New product

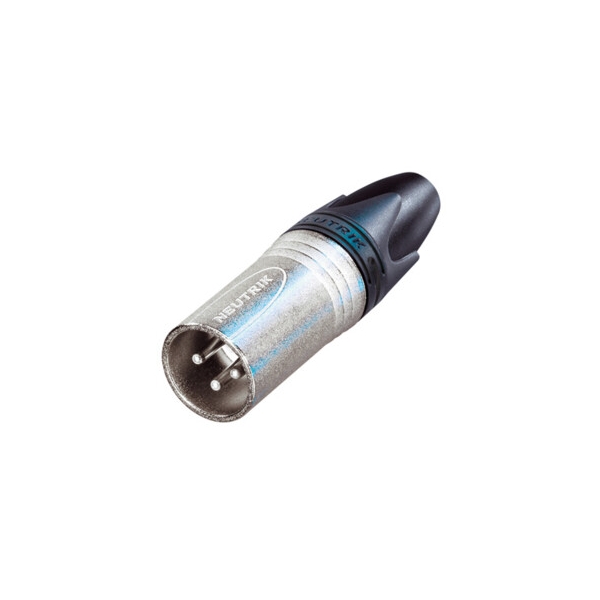

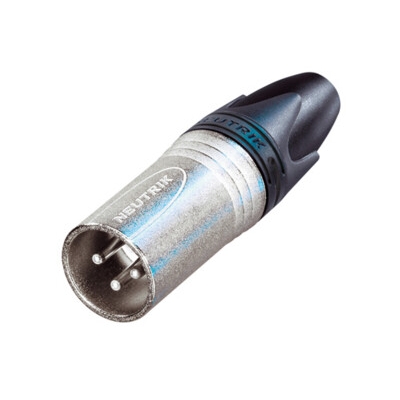

NU-NC3MXX-D Neutrik NC3MXX XLR Male Cable Connector 3-Pin-Nickel-100pcs
The NU-NC3MXX-D is a high-quality Neutrik NC3MXX 3-pin XLR male cable connector designed for professional audio and lighting cable terminations in touring, studio, broadcast, and installed AV systems. Built with a rugged nickel-plated zinc diecast shell and silver-plated brass contacts, it supports solder termination (up to 2.5 mm2 or 14 AWG) and delivers reliable low-resistance performance with contact resistance of 3 mOhm or less and a rated current up to 16 A per contact.
Ideal for building and servicing balanced mic lines, DMX leads, and patch cabling, it features an improved latch lock with a strengthened locking recess for durability, plus an upgraded chuck-style strain relief for higher pull-out force and faster assembly. The polyurethane boot with gland helps protect against cable bending stress, while IEC 61076-2-103 compliance, UL 94 V-0 flammability rating, and a wide -30 to +80 C operating range make it a dependable choice for demanding pro-audio environments. Supplied as a 100 piece bulk pack in disassembled form, it is perfect for installers and cable shops needing consistent Neutrik quality at scale.
Key Features
- 3-pin XLR male cable connector with nickel-plated zinc diecast housing and 2 micrometre silver-plated contacts for stable signal transfer
- Rated 16 A per contact with low contact resistance 3 mOhm or less and dielectric strength 1.5 kVdc for robust electrical performance
- Solder contacts accept up to 2.5 mm2 or 14 AWG conductors with cable outer diameter range 3.5 to 8.0 mm
- Improved chuck type strain relief for higher pull-out force plus polyurethane boot to reduce cable bending stress and extend service life
- 100 pcs bulk pack disassembled with latch lock and over 1000 mating cycles durability for pro audio touring and install applications
- PRODUCT TYPE CONNECTORS
- COLOR SILVER
NEUNC3MXX-D_ds_1
