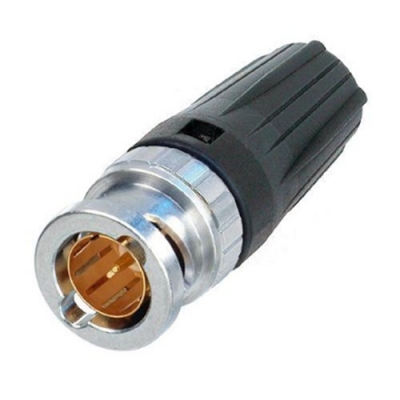

> >>NEUTRIK NBNC75BJP9 REARTWIST 75OHM BNC LINE CONNECTOR SUIT BELDEN 1505F
New NEUTRIK NBNC75BJP9 REARTWIST 75OHM BNC LINE CONNECTOR SUIT BELDEN 1505F View larger

NEUTRIK

NEUTRIK NBNC75BJP9 REARTWIST 75OHM BNC LINE CONNECTOR SUIT BELDEN 1505F

NEUNBNC75BJP9

NU-NBNC75BJP9

New product

Balcatta: 0
Geebung: 0

NEUTRIK NBNC75BJP9 rearTWIST HD BNC Cable Connector 75-Ohm - For Belden-1505F

The NEUTRIK NBNC75BJP9 is a high-performance 75-ohm BNC male cable connector designed for HDTV video broadcast and professional AV signal transmission. Built around Neutrik’s rearTWIST HD design, it delivers true 75 Ω impedance control with a soft-touch rear-access boot for fast locking and unlocking in high-density or recessed panel applications.

Ideal for SDI HD-SDI and precision coax terminations using Belden 1505F cable, it supports secure bayonet coupling and robust jacket-and-shield crimping to prevent exposed braid and improve strain relief. With low contact resistance, strong dielectric performance, and a rated operating range of -30 °C to +85 °C, it offers reliable long-life performance for studio OB truck live production and fixed install environments.

Key Features

  • True 75-ohm rearTWIST HD BNC male connector for high-bandwidth video applications
  • Rear-access soft-touch boot enables easy lock and release in tight or recessed bulkheads
  • Fits 6.3 mm cable O D and supports Belden 1505F for dependable broadcast-grade assemblies
  • Crimp system with 1.6 mm square pin and 6.47 mm hex shield plus jacket crimp for superior retention
  • Durable Swiss-machined brass parts with 1000 plus mating cycles and compliance with IEC 60803 and IEC 60352-2
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
