> >>NEUTRIK NBNC75BRU11 REAR TWIST 75 OHM BNC LINE CONNECTOR SUITS BELDEN 1694F
New NEUTRIK NBNC75BRU11 REAR TWIST 75 OHM BNC LINE CONNECTOR SUITS BELDEN 1694F View larger

NEUTRIK

NEUTRIK NBNC75BRU11 REAR TWIST 75 OHM BNC LINE CONNECTOR SUITS BELDEN 1694F

NEUNBNC75BRU11

NU-NBNC75BRU11

New product

Balcatta: 0
Geebung: 0

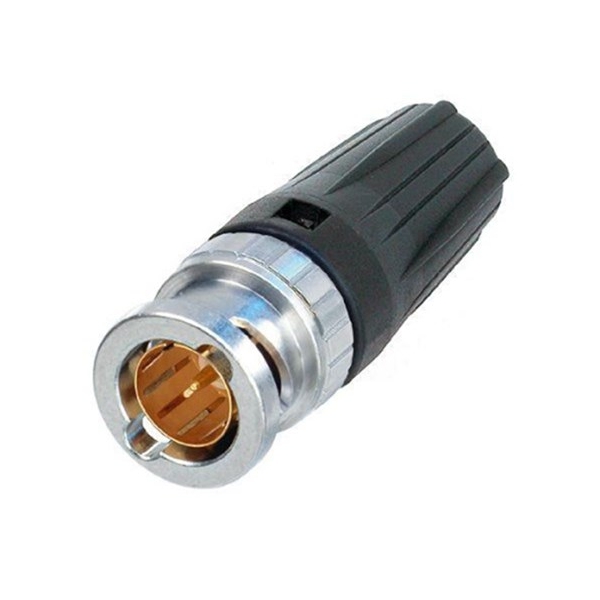

NEUTRIK NBNC75BRU11 rearTWIST HD BNC 75 Ohm Male Cable Connector - For Belden-1694F

The NEUTRIK NBNC75BRU11 is a high-quality true 75 Ohm BNC male cable connector designed for HD video and broadcast signal terminations where consistent impedance and low reflections matter. Built with precise Swiss machined brass parts and a PTFE insert, it features the patented rearTWIST soft-touch boot so you can lock and unlock from the rear for fast access in tight or high-density panels while maintaining excellent cable retention and durability.

Ideal for HDTV, SDI, DVD and professional AV installations, it supports Belden 1694F (and equivalent) coax and delivers very low contact resistance plus strong RF performance with VSWR ratings up to 3 GHz. With bayonet locking, shield and jacket crimp technology to prevent exposed braid, and a -30 °C to +85 °C operating range, it is a dependable choice for studio, OB, touring and permanent install environments.

Key Features

  • True 75 Ohm rearTWIST HD BNC male connector for HD video and RF signal integrity
  • Rear-access soft-touch boot enables easy locking in recessed and high-density bulkheads
  • Optimized leading area reduces tilting and protects contacts for >1000 mating cycles
  • VSWR performance up to 3 GHz with 1.5 kVdc dielectric strength and >5 GOhm insulation resistance
  • Designed for Belden 1694F with 1.6 mm square pin crimp and 7.36 mm hex shield crimp plus jacket crimp anchoring
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
