> >>>TOA CS761BSB 6" 2-WAY 100V LINE 60W IP66 HORN SPEAKER BLACK
New TOA CS761BSB 6" 2-WAY 100V LINE 60W IP66 HORN SPEAKER BLACK View larger

TOA ELECTRONICS

TOA CS761BSB 6" 2-WAY 100V LINE 60W IP66 HORN SPEAKER BLACK

TOACS761BSB

CS761BSB

New product

Balcatta: 0
Geebung: 0

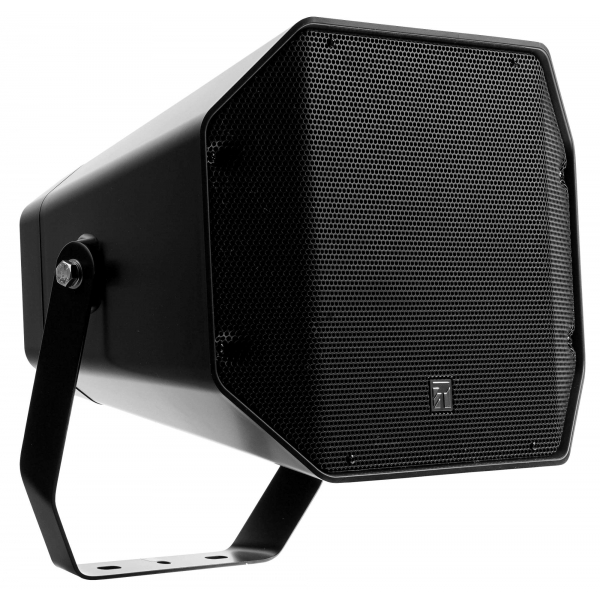

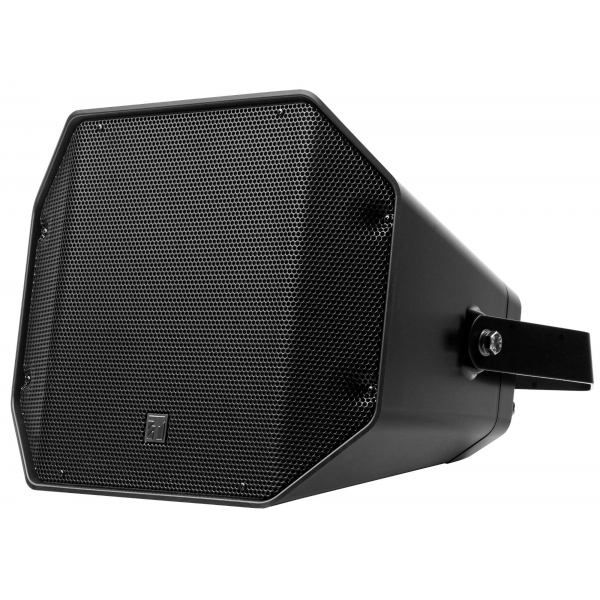

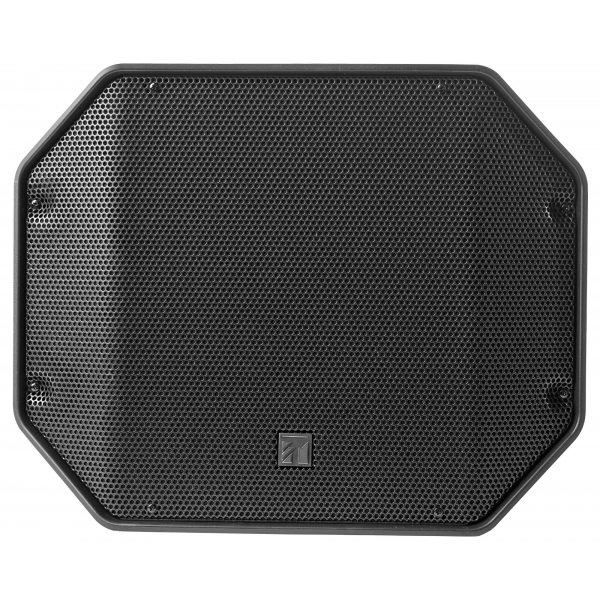

CS-761BS-B TOA 6 Inch 2-Way 100 V Line Weatherproof Music Horn Speaker - 60 W IP66 Black

The TOA CS-761BS-B is a 60 W 2-way weatherproof music horn speaker designed for high-quality BGM and public address announcements in outdoor environments. It combines a 16 cm (6 inch) low-frequency cone speaker with a 2.5 cm (1 inch) tweeter, supporting high efficiency, high power input handling and clear voice intelligibility for distributed audio systems.

Built for semi-outdoor and outdoor applications, the CS-761BS-B has IP66 dust and water protection, a black finish and a special paint coat that helps prevent colour degradation. A rotary switch allows impedance changes for 100 V and 70 V line use, while optional mounting accessories support installation on a wall, pole, ceiling or platform in locations such as stations, car parks, schoolyards, factories and sports areas.

Key Features

  • Supports outdoor public address and background music with a 2-way horn speaker design.
  • Helps deliver intelligible announcements and music playback across busy open areas.
  • Provides installation flexibility for 100 V and 70 V line distributed audio systems.
  • Handles demanding outdoor conditions with IP66-rated dust and water protection.
  • Maintains a clean exterior appearance with a black finish and protective paint coating.
  • Colour Black
  • IP Rating IP66
  • Sensitivity 100 dB
  • Warranty 3 Years
  • PRODUCT TYPE HORN SPEAKER
  • COLOR BLACK
  • Brand TOA
  • Config 2-WAY
  • Driver Size 6"
  • Power Type 70V/100V LINE
  • SPL (DB) 100
  • Dispersion Angle 90H X 80V
  • Input Connector CERAMIC TERMINAL
  • HF Driver Size 1"
  • LF Driver Size 6"
  • Max Wattage 60W
  • Max 100V Tap (W) 60W
  • 100V Taps List 7.5W;15W;30W;60W
  • Max 70V Tap (W) 60W
  • 70V Taps List 7.5W;15W;30W;60W
  • Unit Dimensions (mm) 310H x 388W x 367D
