> >>>TOA CS760B 6" 2-WAY 100V/70V LINE 60W IP66 OUTDOOR 100V LINE WALL MOUNTED MUSIC HORN SPEAKER BLACK

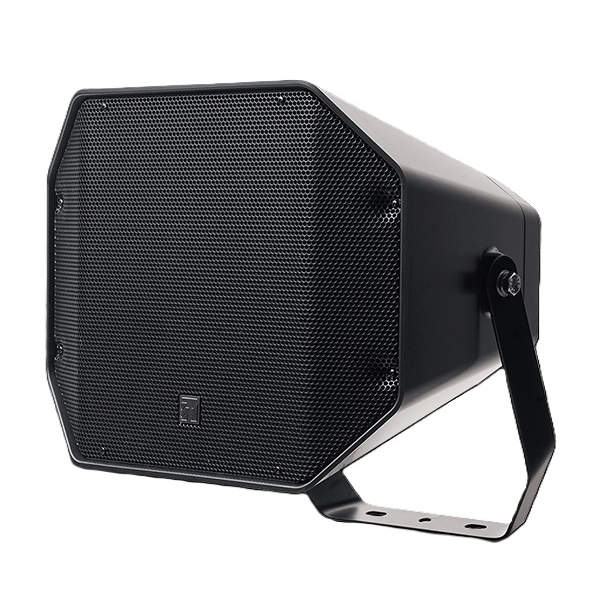

TOA CS760B 6" 2-WAY 100V LINE 60W IP66 WALL MOUNTED HORN SPEAKER BLACK View larger

TOA

TOA CS760B 6" 2-WAY 100V/70V LINE 60W IP66 OUTDOOR 100V LINE WALL MOUNTED MUSIC HORN SPEAKER BLACK

TOACS760B

CS760B

New product

Balcatta: 0
Geebung: 0

TOACS760B CS-760B-AS Weatherproof 2-Way Music Horn Speaker 60 W

The TOACS760B is the TOA CS-760B-AS, a compact 2-way weatherproof music horn speaker system rated at 60 W for 100 V and 70 V line installations. It combines a 16 cm cone-type low-frequency driver with a 2.5 cm dome tweeter to support intelligible public address announcements, voice alarm use and background music in outdoor sound systems.

Designed for fully outdoor environments, the CS-760B-AS carries IP66 dust and water protection and uses a black ABS enclosure, surface-treated steel punched net and stainless-steel bracket construction. A rotary impedance switch supports practical line adjustment, while accessory bracket options allow the speaker to be mounted on a platform, ceiling, wall or pole as the installation requires.

Key Features

  • Combines speech and music capability for outdoor public address and BGM applications.
  • Supports clearer announcement delivery through a dedicated 2-way speaker design.
  • Helps simplify installation setup with rotary impedance selection for line systems.
  • Suits exposed locations with IP66 protection and weather-focused exterior finishing.
  • Gives installers flexible placement options across common fixed-mount positions.
  • Colour Black
  • Impedance 100V LINE
  • IP Rating IP66
  • Sensitivity 100 dB
  • Warranty 3 Years
  • PRODUCT TYPE MUSIC HORN SPEAKER
  • COLOR BLACK
  • Brand TOA
  • Config 2-WAY
  • Driver Size 6"
  • Power Type 100V/70V LINE
  • Mount Type WALL MOUNTED
  • SPL (DB) 100
  • Dispersion Angle 90H X 80V
  • Input Connector SPEAKER CORD
  • Weight (kg) 7.4 KG
  • HF Driver Size 1"
  • LF Driver Size 6"
  • Enclosure ABS
  • Max SPL (dB) 117 DB
  • Hertz 100-20000HZ
  • Max Wattage 60W
  • Max 100V Tap (W) 60W
  • 100V Taps List 60W; 30W; 15W; 7.5W
  • Max 70V Tap (W) 60W
  • 70V Taps List 60W; 30W; 15W; 7.5W
  • Unit Dimensions (mm) 310H x 388W x 367D
  • Pair SINGLE
  • Crossover Freq 2.5KHZ
