> >>>TOA CS760W 6" 2-WAY 100V/70V LINE 60W IP66 OUTDOOR 100V LINE WALL MOUNTED MUSIC HORN SPEAKER WHITE

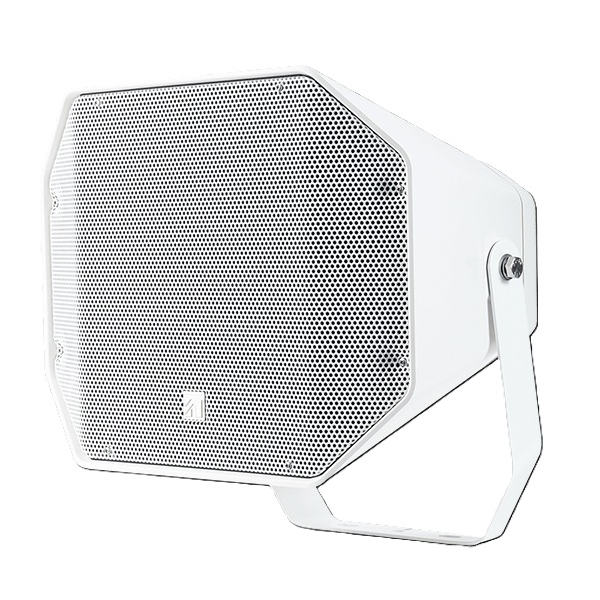

TOA CS760W 6" 2-WAY 100V LINE 60W IP66 WALL MOUNTED HORN SPEAKER WHITE View larger

TOA

TOA CS760W 6" 2-WAY 100V/70V LINE 60W IP66 OUTDOOR 100V LINE WALL MOUNTED MUSIC HORN SPEAKER WHITE

TOACS760W

CS760W

New product

Balcatta: 0
Geebung: 0

TOACS760W TOA CS-760W-AS Weatherproof 2-Way Music Horn Speaker 60 W

The TOACS760W is the TOA CS-760W-AS, a compact 2-way weatherproof music horn speaker rated at 60 W for 100 V and 70 V line installations. It combines a 16 cm cone-type low-frequency driver with a 2.5 cm dome tweeter to deliver high speech intelligibility for public address announcements, voice alarm systems and background music in fully outdoor environments.

Designed for outdoor installations, the CS-760W-AS features an IP66-rated enclosure with a white ABS cabinet, surface-treated steel punched grille and stainless-steel mounting bracket for long-term weather resistance. A rotary impedance selector simplifies line power adjustment, while optional mounting brackets provide flexibility for platform, ceiling, wall or pole installations.

Key Features

  • Supports public address, voice alarm and background music applications with a 2-way speaker design.
  • Helps deliver clear speech and balanced music reproduction in outdoor environments.
  • Rotary impedance selector simplifies configuration for 100 V and 70 V line systems.
  • IP66-rated construction with weather-resistant finishes supports long-term outdoor use.
  • Optional mounting brackets allow installation on platforms, ceilings, walls or poles.
  • Colour White
  • Impedance 100V LINE
  • IP Rating IP66
  • Sensitivity 100 dB
  • Warranty 3 Years
  • PRODUCT TYPE MUSIC HORN SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Config 2-WAY
  • Driver Size 6"
  • Power Type 100V/70V LINE
  • Mount Type WALL MOUNTED
  • SPL (DB) 100
  • Dispersion Angle 90H X 80V
  • Input Connector SPEAKER CORD
  • Weight (kg) 7.4 KG
  • HF Driver Size 1"
  • LF Driver Size 6"
  • Enclosure ABS
  • Max SPL (dB) 117 DB
  • Hertz 100-20000HZ
  • Max Wattage 60W
  • Max 100V Tap (W) 60W
  • 100V Taps List 60W; 30W; 15W; 7.5W
  • Max 70V Tap (W) 60W
  • 70V Taps List 60W; 30W; 15W; 7.5W
  • Unit Dimensions (mm) 310H x 388W x 367D
  • Pair SINGLE
  • Crossover Freq 2.5KHZ
