> >>>TOA CS154 CS-154 4.72" 100V/70V LINE 15W IP65 OUTDOOR 670 OHM WALL MOUNTED WIDE RANGE CONE SPEAKER WHITE
TOA CS-154 15W 100V WIDE DISPERSION HORN SPEAKER IP65 OFF-WHITE View larger

TOA

TOA CS154 CS-154 4.72" 100V/70V LINE 15W IP65 OUTDOOR 670 OHM WALL MOUNTED WIDE RANGE CONE SPEAKER WHITE

TOACS154

CS154

New product

Balcatta: 0
Geebung: 0

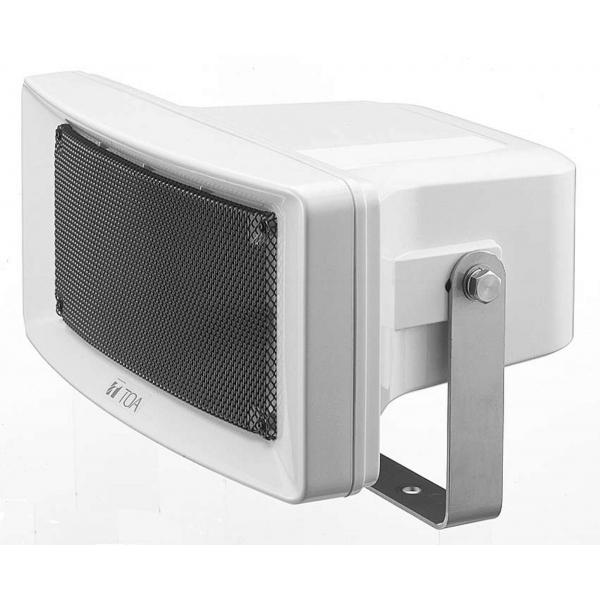

CS-154 Outdoor Wide Range Cone Speaker - 15 W

The CS-154 is a 15 W outdoor wide range cone speaker designed for voice paging, background music and tone signalling distribution. It combines the intelligibility of a weather-resistant horn speaker with the sound quality of a dynamic 12 cm cone-type speaker, using a constant directivity horn for clear horizontal sound output across a 90° range.

Built for distributed audio installations, the speaker supports 70 V and 100 V line operation with selectable transformer taps and a rotary switch for impedance changes. Its IP65 dust and water protection, off-white ABS resin enclosure, aluminium net and stainless steel hardware make it suitable for exposed commercial paging and audio applications.

Key Features

  • Supports paging, background music and tone signalling from one outdoor speaker platform
  • Helps deliver clearer coverage across listening areas through constant directivity horn design
  • Suits distributed audio systems with selectable 70 V and 100 V line operation
  • Provides practical weather protection for exposed installations with an IP65-rated enclosure
  • Combines corrosion-resistant hardware and a protective aluminium net for dependable site use
  • Colour White
  • Impedance 670 OHM
  • IP Rating IP65
  • Sensitivity 97 dB
  • Warranty 5 Years
  • PRODUCT TYPE WIDE RANGE CONE SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Driver Size 4.72"
  • Power Type 100V/70V LINE
  • Mount Type WALL MOUNTED
  • SPL (DB) 97
  • Dispersion Angle 90H X 90V
  • Input Connector 2-CORE CABTYRE CORD
  • Weight (kg) 2.8 KG
  • LF Driver Size 4.72"
  • Enclosure ABS RESIN
  • Max SPL (dB) 118 DB
  • Hertz 150-15000HZ
  • Max Wattage 15W
  • Max 100V Tap (W) 15W
  • 100V Taps List 5W;10W;15W
  • Max 70V Tap (W) 15W
  • 70V Taps List 2.5W; 5W; 7.5W; 15W
  • Unit Dimensions (mm) 230H x 366W x 272D
  • Pair SINGLE
  • Series CS-154
