> >>>TOA TC631M 100V/70V LINE 30W IP65 OUTDOOR BRACKET MOUNT MUSIC HORN SPEAKER OFF-WHITE

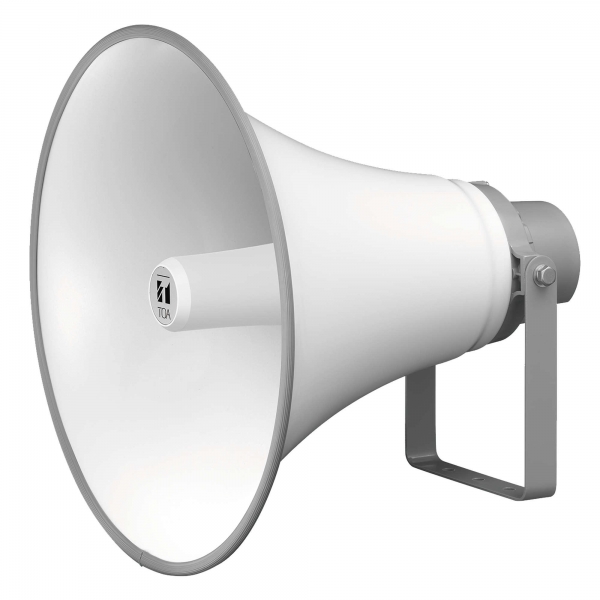

TOA TC-631M 30W 100V HORN SPEAKER View larger

TOA

TOA TC631M 100V/70V LINE 30W IP65 OUTDOOR BRACKET MOUNT MUSIC HORN SPEAKER OFF-WHITE

TOATC631M

TC631M

New product

Balcatta: 0
Geebung: 0

TC631M TOA 30 W IP65 Reflex Horn Speaker - 70 V and 100 V Off-White

The TOA TC-631M is a 30 W high-impedance reflex horn speaker for public address and background music systems. It supports 70 V and 100 V line operation, with 110 dB sensitivity at 1 W/1 m and a 200 Hz to 6 kHz frequency response for speech and general programme reproduction.

Rated IP65 for indoor and outdoor use, the round horn combines a powder-coated aluminium flare, ABS reflector and steel mounting bracket with stainless-steel hardware. Its 500 mm diameter, 463 mm depth and 4.5 kg net weight suit planned fixed installations requiring a substantial reflector horn.

Key Features

  • Multiple transformer settings support precise output matching across distributed speaker zones
  • Rear-panel impedance selection can be completed without disassembling the horn
  • Heat-resistant polyimide diaphragm helps resist moisture-related deformation
  • Operating range from -20 °C to +60 °C accommodates demanding installation climates
  • Efficient magnetic-circuit design supports strong acoustic output from a 30 W line speaker
  • Colour OFF-WHITE
  • IP Rating IP65
  • Sensitivity 110 DB
  • Warranty 5 Years
  • PRODUCT TYPE MUSIC HORN SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Power Type 100V/70V LINE
  • Mount Type BRACKET MOUNT
  • Input Connector 600 MM SPEAKER CABLE
  • Weight (kg) 4.5 KG
  • Enclosure ABS RESIN
  • Max SPL (dB) 110 DB
  • Hertz 200-6000HZ
  • Max Wattage 30W
  • Max 100V Tap (W) 30W
  • Max 70V Tap (W) 30W
  • Unit Dimensions (mm) 227H x 285W x 277D
  • Pair SINGLE
