> >>>INDESIGN IDH10-1 100V LINE 10W 8 OHM HORN SPEAKER OFF-WHITE

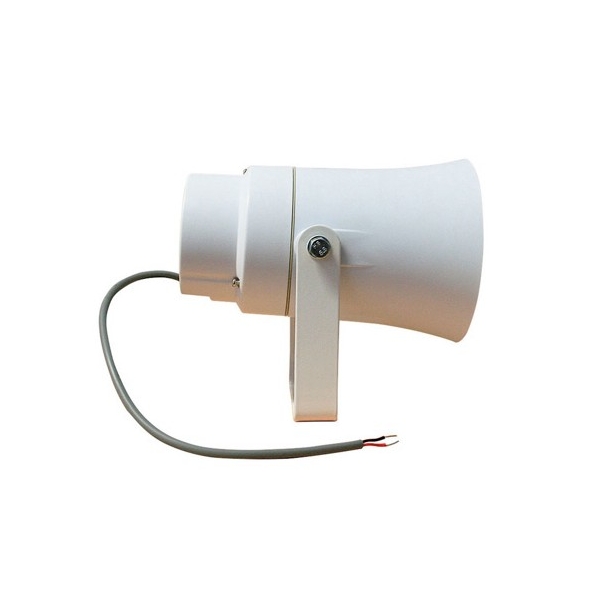

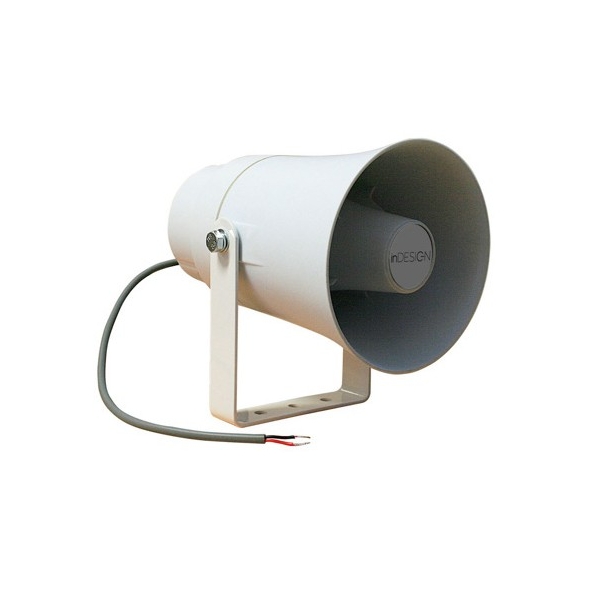

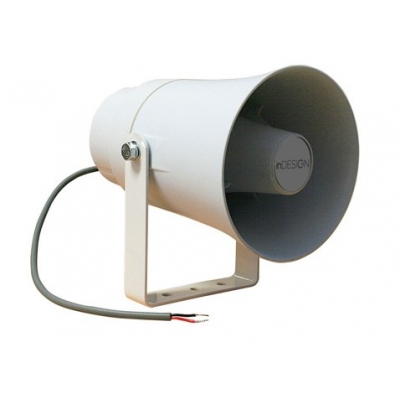

INDESIGN IDH-10-1 10W HORN SPEAKER 100V Ø143X210MM RAL9013 View larger

INDESIGN IDH10-1 100V LINE 10W 8 OHM HORN SPEAKER OFF-WHITE

IDEIDH10-1

IDH10-1

New product

Balcatta: 0
Geebung: 0

IDH10-1 inDESIGN 10 W 100 V Horn Speaker - 143 Dia x 210 mm RAL 9013

The inDESIGN iDH-10-1 is a 10 W horn speaker for 100 V distributed audio systems, featuring selectable transformer taps at 10 W, 5 W, 2.5 W and 1.25 W. It also supports an 8 Ohm low-impedance connection for compatibility with high- and low-impedance amplifier systems.

The speaker has a frequency response of 400 Hz to 10 kHz and a sensitivity of 105 dB SPL at 1 W/1 m. It features an ABS enclosure measuring 143 Dia x 210 mm with a RAL 9013 finish and includes a U-shaped mounting bracket for installation.

Key Features

  • Selectable 100 V transformer taps at 10 W, 5 W, 2.5 W and 1.25 W
  • 8 Ohm low-impedance operation for amplifier compatibility
  • 105 dB SPL sensitivity at 1 W/1 m
  • 400 Hz to 10 kHz frequency response for voice applications
  • ABS enclosure with RAL 9013 finish and U-shaped mounting bracket
  • Colour OFF-WHITE
  • Impedance 8 ohm
  • Sensitivity 108 DB
  • Warranty 5 Years
  • PRODUCT TYPE HORN SPEAKER
  • COLOR WHITE
  • Brand INDESIGN
  • Power Type 100V LINE
  • Enclosure ABS
  • Hertz 400-10000HZ
  • Max Wattage 10W
  • Max 100V Tap (W) 10W
  • Pair SINGLE
