> >>>TOA CS64BS 5" 100V LINE WALL MOUNTED HORN SPEAKER WHITE
New TOA CS64BS 5" 100V LINE WALL MOUNTED HORN SPEAKER WHITE View larger

TOA ELECTRONICS

TOA CS64BS 5" 100V LINE WALL MOUNTED HORN SPEAKER WHITE

TOACS64BS

CS64BS

New product

Balcatta: 0
Geebung: 0

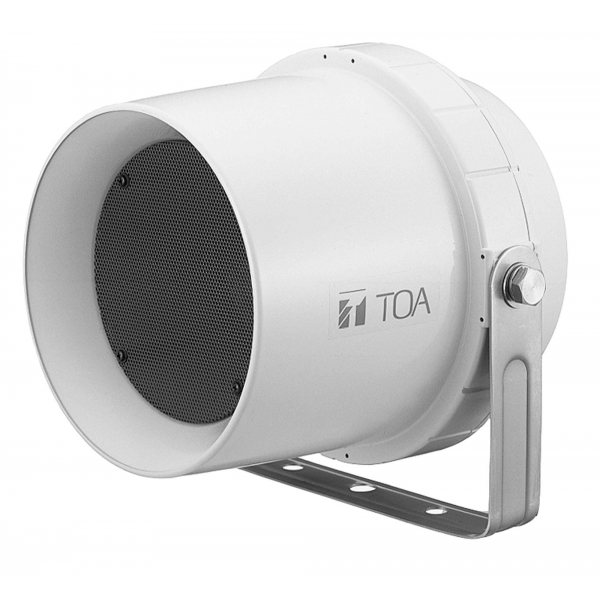

CS-64BS TOA 5 Inch Wide Range Wall Mounted Horn Speaker - 6 W 100 V Line Off-White

The TOA CS-64BS is a 6 W wide-range outdoor horn speaker for paging announcements, voice alarm, background music and tone signalling in commercial sound systems. It combines a horn with a 12 cm (5 inch) cone-type speaker to improve acoustic conversion efficiency and support clear, uniform sound dispersion over a wide area, with selectable transformer taps for 100 V and 70 V line installations.

Designed for wall mounting, the CS-64BS has a lightweight impact-resistant ABS resin enclosure in off-white with polyurethane resin paint, stainless steel brackets and screws, and IP34 dust/water protection for outdoor applications. It is certified to EN 54-24 and ISO 7240-24 and complies with BS 5839-8:2008 14.8, making it suitable for voice alarm system applications in schools, parking facilities, factories, parks and swimming pool areas.

Key Features

  • Supports paging, voice alarm, background music and tone signalling from one wide-range speaker.
  • Helps deliver clear sound over broad areas through horn and cone speaker construction.
  • Fits 100 V and 70 V line systems with selectable power tap settings for installation flexibility.
  • Provides outdoor installation confidence with IP34 protection and weather-treated speaker parts.
  • Uses corrosion-resistant stainless steel hardware and an impact-resistant ABS resin enclosure.
  • Colour White
  • Sensitivity 96 dB
  • Warranty 3 Years
  • PRODUCT TYPE HORN SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Driver Size 5"
  • Power Type 70V/100V LINE
  • Mount Type WALL MOUNTED
  • SPL (DB) 96
  • Input Connector SCREW TERMINAL
  • LF Driver Size 5"
  • Max SPL (dB) 100 DB
  • Hertz 130-13000HZ
  • Max Wattage 6W
  • Unit Dimensions (mm) 224H x 233W x 249D
