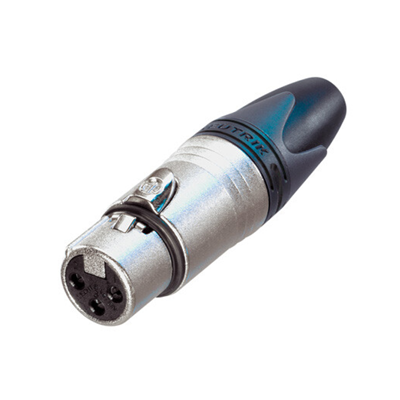

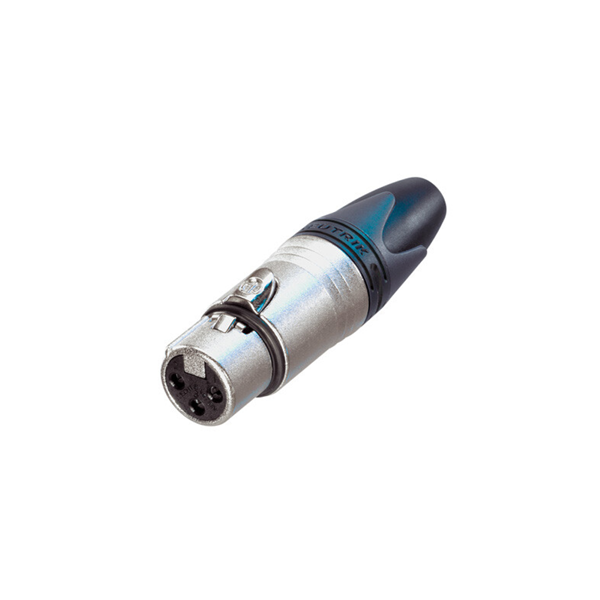

NU-NC3FXX-D Neutrik NC3FXX 3 Pin XLR Female Cable Connector Nickel Housing Silver Contacts - 100pcs Bulk Pack

The NU-NC3FXX-D is a high-quality 3-pole XLR female cable connector designed for reliable audio and signal cabling in professional sound, broadcast, studio, and stage applications. Built on the next-generation NC3FXX platform with a rugged nickel-plated zinc diecast shell and 2 µm silver-plated bronze contacts, it delivers low contact resistance, excellent contact integrity, and long-lasting performance over 1000+ mating cycles.

Ideal for building and servicing microphone cables, balanced audio leads, and DMX-style interconnects, it supports cable O.D. 3.5-8.0 mm with a chuck-type strain relief and polyurethane boot to resist bending stress and improve pull-out strength. It complies with IEC 61076-2-103, meets UL 94 V-0 flammability, offers IP40 protection, and is rated 16 A per contact at < 50 V with 1.5 kVdc dielectric strength, making it a dependable choice for demanding pro-audio environments and OEM production.

Key Features

  • 3-pole XLR female cable connector with latch lock for secure, professional-grade connections
  • Nickel-plated zinc diecast shell with silver-plated contacts for durability and excellent conductivity
  • Unique female contact cage design plus solder barrier to reduce contact resistance and prevent solder migration
  • Rated 16 A per contact at < 50 V with 1.5 kVdc dielectric strength and IEC 61076-2-103 compliance
  • Disassembled 100pcs bulk pack for efficient cable assembly, servicing, and production builds
  • PRODUCT TYPE CONNECTORS
  • COLOR SILVER
