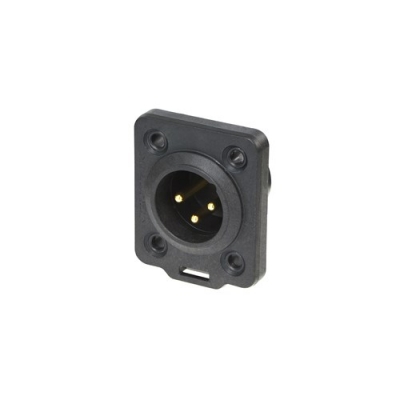

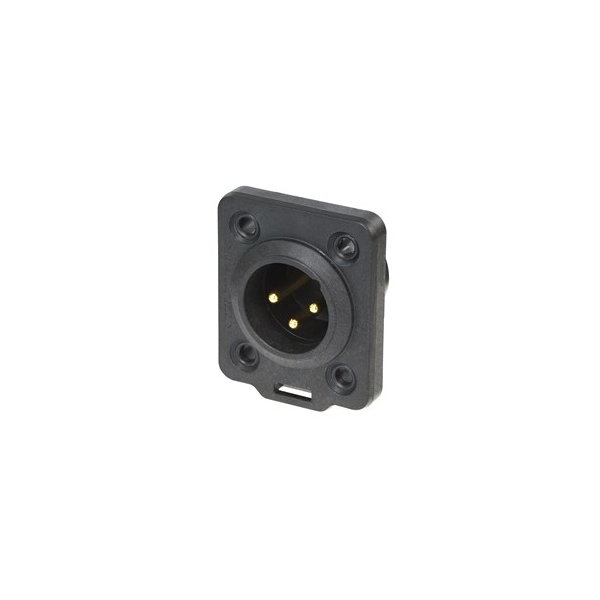

NEUTRIK NC3MDX-TOP XLR TOP MALE 3 POLE CHASSIS CONNECTOR IP65 AND UV RESISTANT
NEUNC3MDX-TOP
NU-NC3MDX-TOP
New product
NEUTRIK NC3MDX-TOP Male 3 Pole Chassis Connector IP65
The NEUTRIK NC3MDX-TOP is a high-quality 3-pole male XLR chassis connector designed for reliable outdoor audio and signal connectivity in harsh environments. Featuring a heavy-duty sealed D-shape front-mount chassis with solder contacts, it uses high-impact UV-resistant polyamide construction with a TPE gasket to ensure long-lasting weatherproof performance and stable sealing when connected or disconnected.
Ideal for outdoor stages, touring racks, broadcast panels, and installed AV systems, it is IP65 rated and TOP approved in consideration to UL50E when mated with compatible XLR TOP connectors, and complies with IEC 61076-2-103 for dependable professional use in demanding indoor and outdoor applications.
Key Features
- 3-pole male XLR chassis connector with latch lock for secure connections
- IP65 protection and UV-resistant heavy-duty sealed design for true outdoor use
- Front-mount D-shape chassis with solder contacts and >5000 mating cycles lifetime
- Gold-plated brass contacts (0.2 µm Au over 2 µm Ni) with 16 A per contact rating
- Wide operating range -30 °C to +80 °C with UL94 V-0 flammability and IEC compliance
- PRODUCT TYPE CONNECTORS
- COLOR BLACK
NEUNC3MDX-TOP_ds_1
