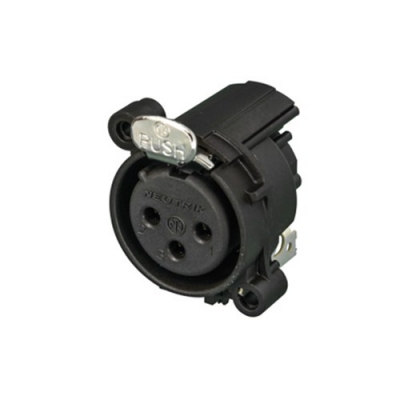

> >>>NEUTRIK NC3FAH1 FEMALE - PIN 1 TO CHASSIS/GROUND (HORIZONTAL)
New NEUTRIK NC3FAH1 FEMALE - PIN 1 TO CHASSIS/GROUND (HORIZONTAL) View larger

NEUTRIK

NEUTRIK NC3FAH1 FEMALE - PIN 1 TO CHASSIS/GROUND (HORIZONTAL)

NEUNC3FAH1

NU-NC3FAH1

New product

Balcatta: 0
Geebung: 0

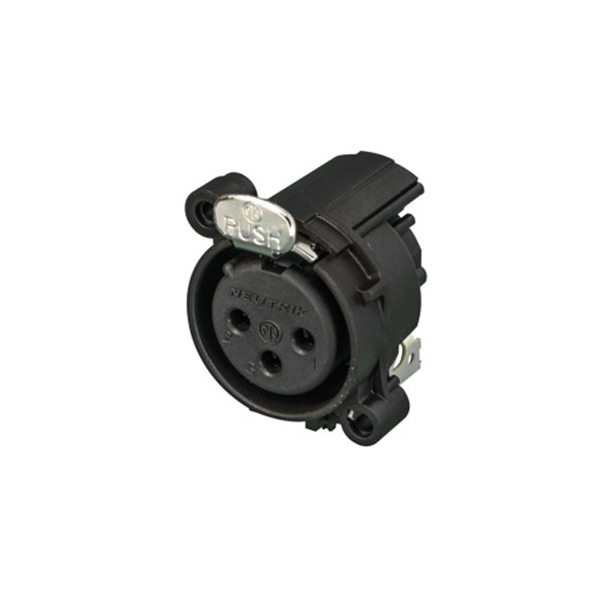

NEUTRIK NC3FAH1 3-Pole Female XLR Receptacle Pin1 To Chassis Ground - Horizontal PCB

The NEUTRIK NC3FAH1 is a high-quality 3-pole female XLR panel receptacle designed for professional audio equipment requiring pin 1 bonding to chassis and the mating connector shell. Built in Neutrik’s high-density round plastic housing with a horizontal PCB-mount layout, it supports tight 23 mm center-to-center spacing and features tulip-style female contacts with polished hard gold plating to ensure low resistance stable signal transfer.

Ideal for mixers stageboxes amps and rack panels, it provides reliable EMC-friendly grounding with pin 1 connected directly to the front panel and connector shell without a separate ground contact. UL recognized and compliant with IEC 61076-2-103, it offers long-life durability over 1000 mating cycles plus UL94 V-0 flammability and an operating range of -30 C to +80 C for touring broadcast and fixed-install environments.

Key Features

  • 3-pole female XLR horizontal PCB-mount receptacle with high packing density 23 mm spacing
  • Grounding option bonds pin 1 directly to front panel and mating connector shell for improved noise control
  • Tulip-type bronze contacts with polished hard gold plating for consistent low contact resistance
  • UL recognized with IEC 61076-2-103 compliance plus UL94 V-0 housing and IP40 protection
  • Rear-mount A-shape chassis design with latch lock rated over 1000 mating cycles
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
