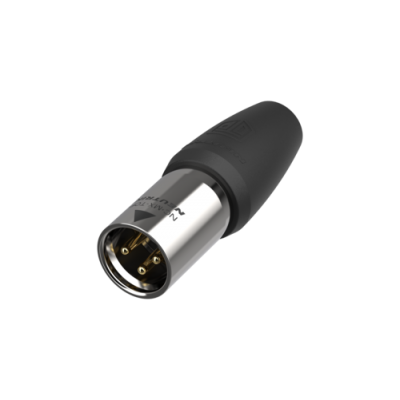

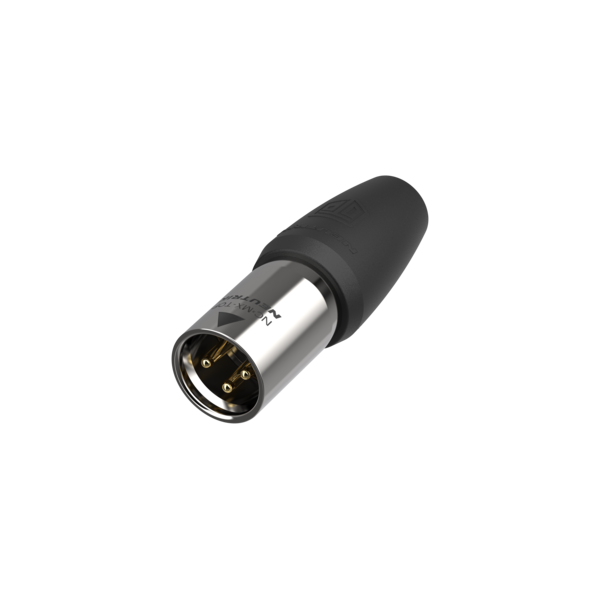

> >>>NEUTRIK NC3MX1-TOP TOP SERIES 3-POLE MALE XLR CABLE CONNECTOR IP65 UV RESISTANT GOLD CONTACTS
New NEUTRIK NC3MX1-TOP TOP SERIES 3-POLE MALE XLR CABLE CONNECTOR IP65 UV RESISTANT GOLD CONTACTS View larger

NEUTRIK

NEUTRIK NC3MX1-TOP TOP SERIES 3-POLE MALE XLR CABLE CONNECTOR IP65 UV RESISTANT GOLD CONTACTS

NEUNC3MX1-TOP

NU-NC3MX1-TOP

New product

Balcatta: 0
Geebung: 0

NEUNC3MX1-TOP Neutrik NC3MX1 TOP 3 Pole Male XLR Cable Connector IP65 UV Resistant Gold Contacts 3 Pole - Single

The NEUNC3MX1-TOP is a high-quality 3-pin male XLR cable connector designed for demanding outdoor audio connections. Supporting 5.0–8.0 mm cable O.D., it features a stainless steel shell, gold-over-nickel contacts, and UV-resistant sealing with a secure latch-lock design to ensure IP65 weatherproof integrity, long-term conductivity, and reliable strain relief.

Ideal for live sound, fixed installations, and stage infrastructure in harsh environments, it complies with IEC 61076-2-103 and UL50E enclosure type 4 and offers >5000 mating cycles, ≤3 mΩ contact resistance, and -30 °C to +80 °C operating range, making it suitable for touring, stadiums, theme parks, and outdoor venues.

Key Features

  • 16 A per contact <50 V with 1.5 kVdc dielectric strength for robust low-voltage audio interconnects
  • Stainless steel shell with gold-plated brass contacts and UV-resistant rubber bushing for durability
  • Latch-lock, solder contacts, and clamp for 5.0–8.0 mm cables enable fast, secure assembly
  • IP65 True Outdoor Protection; UL 94 V-0 materials; UL50E type 4 when mated
  • Supplied as a single connector for field termination and maintenance stock
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
