> >>>NEUTRIK NC3FRX-B 3 PIN RIGHT ANGLE FEMALE CONNECTOR
New NEUTRIK NC3FRX-B 3 PIN RIGHT ANGLE FEMALE CONNECTOR View larger

NEUTRIK

NEUTRIK NC3FRX-B 3 PIN RIGHT ANGLE FEMALE CONNECTOR

NEUNC3FRX-B

NU-NC3FRX-B

New product

Balcatta: 0
Geebung: 0

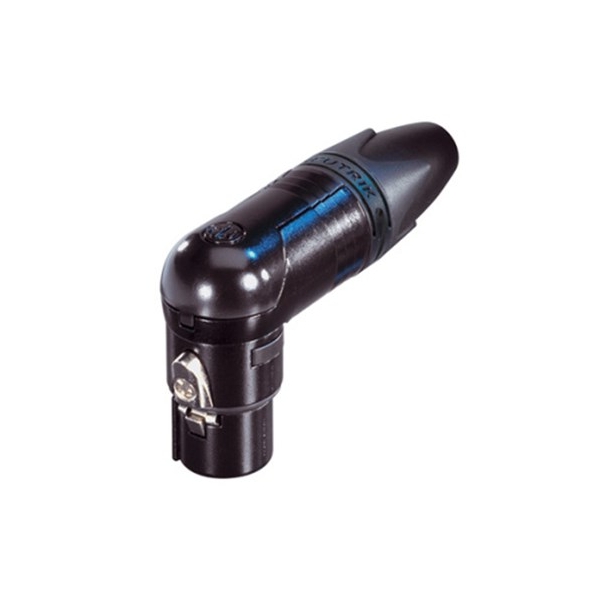

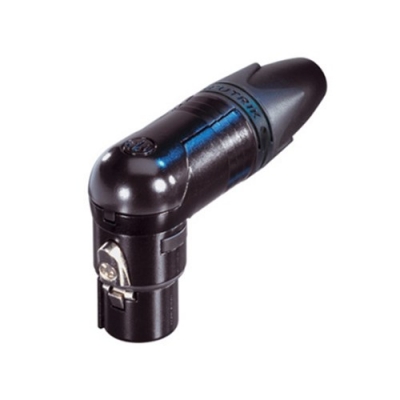

NEUTRIK NC3FRX-B 3 Pin Right Angle Female XLR Connector - Black

The NEUTRIK NC3FRX-B is a high-quality 3-pole right-angle female XLR cable connector designed for space-saving, professional audio cabling in tight rack spaces, stage boxes, patch panels, and touring looms. Built on Neutrik’s RX Series platform, it features an extra-slim right-angle metal housing with gold-plated contacts and a unique cage-style female contact design to deliver low contact resistance, high integrity signal transfer, and long-term reliability.

Ideal for live sound, broadcast, studio, and installation work, it includes five selectable cable outlet positions for clean routing, an improved solid metal latch for secure locking, and additional ground spring contacts for better shell ground continuity. With a chuck-style strain relief and a polyurethane gland boot to protect against cable bending stress, it complies with IEC 61076-2-103 and UL 94 V-0 flammability requirements, making it a dependable choice for demanding professional environments.

Key Features

  • 3-pole right-angle female XLR cable connector with extra-slim RX Series profile for tight spaces
  • Gold-plated contacts with low contact resistance up to 3 mΩ and capacitance up to 4 pF for clean audio
  • Five selectable cable outlet positions plus improved chuck strain relief for fast assembly and high pull-out force
  • Rated 16 A per contact and under 50 V with 1.5 kVdc dielectric strength and over 2 GΩ insulation resistance
  • Black chromium plated zinc diecast shell with polyurethane boot and IP40 protection rated for over 1000 mating cycles
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
