> >>>NEUTRIK NC3MXX-BAG MALE 3-PIN LINE CONNECTOR BLACK/SILVER PINS
New NEUTRIK NC3MXX-BAG MALE 3-PIN LINE CONNECTOR BLACK/SILVER PINS View larger

NEUTRIK

NEUTRIK NC3MXX-BAG MALE 3-PIN LINE CONNECTOR BLACK/SILVER PINS

NEUNC3MXX-BAG

NU-NC3MXX-BAG

New product

Balcatta: 0
Geebung: 0

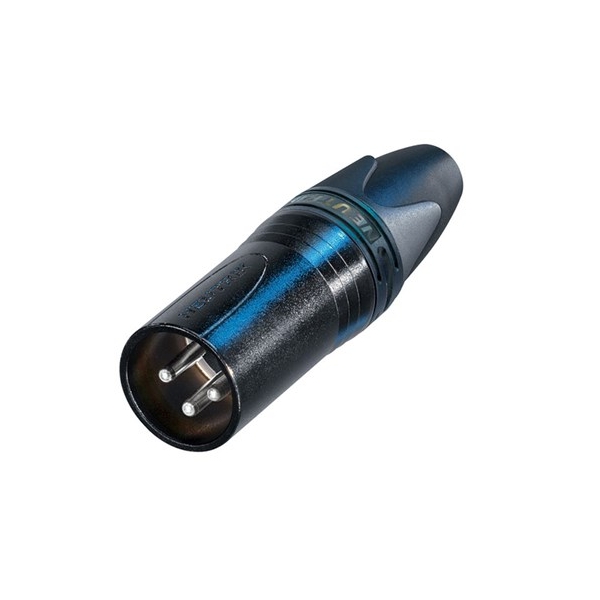

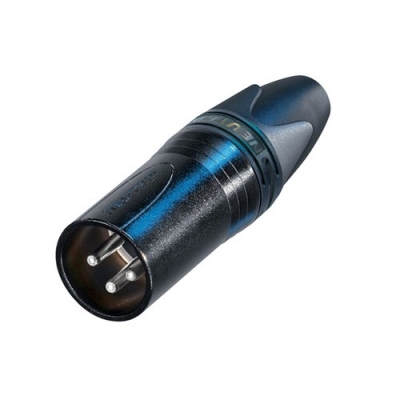

NEUTRIK NC3MXX-BAG XLR Male Cable Connector Black Housing Silver Contacts 3-Pole

The NEUTRIK NC3MXX-BAG is a high-quality 3-pole male XLR cable connector designed for professional audio, broadcast, and live sound interconnects where dependable signal transfer and rugged handling matter. As part of Neutrik’s next-generation XX series, it features a tough black KTL-coated zinc diecast shell with 2 µm silver-plated brass contacts and a sleek ergonomic body to ensure low contact resistance, excellent contact integrity, and long-lasting performance.

Ideal for stage, studio, touring racks, and fixed installations, it complies with IEC 61076-2-103 and meets UL 94 V-0 flammability requirements while offering IEC 68-2-20 solderability compliance for consistent termination quality. An improved locking recess without a window increases durability, the upgraded chuck-type strain relief boosts pull-out force, and a polyurethane boot gland protects against cable bending stress, making it a reliable choice for demanding professional environments.

Key Features

  • 3-pole male XLR cable connector with solder contacts and secure latch lock
  • Black KTL-coated zinc diecast shell with 2 µm silver-plated brass contacts for stable conductivity
  • Improved locking recess without window plus protected internal thread for enhanced durability
  • 16 A per contact rating with 1.5 kVdc dielectric strength and IP40 protection class
  • Supports 3.5-8.0 mm cable O.D. and up to 2.5 mm² 14 AWG wiring with >1000 mating cycles
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK/SILVER
