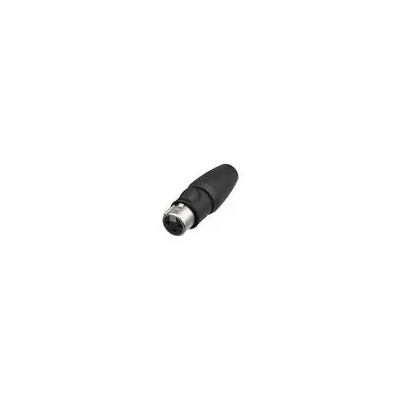

> >>>NEUTRIK NC3FX1-TOP 3 POLE FEMALE XLR CABLE CONNECTOR IP65 UV RESISTANT GOLD CONTACTS
New NEUTRIK NC3FX1-TOP 3 POLE FEMALE XLR CABLE CONNECTOR IP65 UV RESISTANT GOLD CONTACTS View larger

NEUTRIK

NEUTRIK NC3FX1-TOP 3 POLE FEMALE XLR CABLE CONNECTOR IP65 UV RESISTANT GOLD CONTACTS

NEUNC3FX1-TOP

NU-NC3FX1-TOP

New product

Balcatta: 0
Geebung: 0

NEUNC3FX1-TOP Neutrik NC3FX1 TOP 3 Pole Female XLR Cable Connector IP65 UV Resistant Gold Contacts 3 Pole - Single

The NEUNC3FX1-TOP is a high-quality 3-pin female XLR cable connector designed for professional outdoor audio connections. Supporting cables 5.0–8.0 mm O.D., it features a zinc die-cast shell with nickel plating, UV-resistant sealing, and gold-plated contacts with a secure latch-lock design to ensure IP65 weatherproof performance and long-term signal reliability when mated.

Ideal for live sound, installations, and stage boxes in harsh environments, it complies with IEC 61076-2-103 and UL94 V-0 (insert) and offers True Outdoor Protection with robust strain relief and >5000 mating cycles, making it suitable for touring, stadiums, theme parks, and fixed outdoor venues.

Key Features

  • Rated 16 A per contact <50 V for dependable low-voltage audio interconnects
  • Gold over nickel contacts and UV-resistant rubber bushing for corrosion and sunlight resistance
  • Latch-lock, solder contacts, and clamp for 5.0–8.0 mm O.D. cables for fast, secure assembly
  • IP65 when mated, TOP True Outdoor Protection; compliant with IEC 61076-2-103 and UL94 V-0 (insert)
  • Supplied as a single connector for field or bench termination
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
