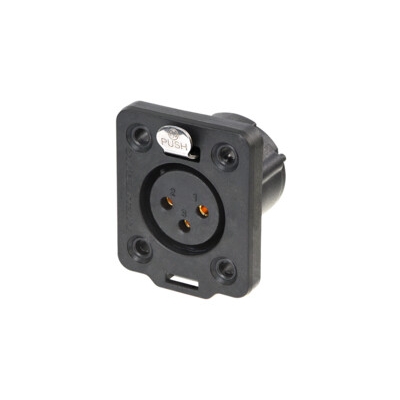

New NEUTRIK NC3FDX-TOP XLR TOP FEMALE 3 POLE CHASSIS CONNECTOR IP65 AND UV RESISTANT View larger

NEUTRIK

NEUTRIK NC3FDX-TOP XLR TOP FEMALE 3 POLE CHASSIS CONNECTOR IP65 AND UV RESISTANT

NEUNC3FDX-TOP

NU-NC3FDX-TOP

New product

Balcatta: 0
Geebung: 0

NEUTRIK NC3FDX-TOP XLR TOP Female 3 Pole Chassis Connector - IP65 UV Resistant

The NEUTRIK NC3FDX-TOP is a high-quality heavy-duty 3 pole female XLR chassis connector designed for true outdoor audio connectivity in harsh and demanding environments. Featuring a rugged sealed XLR TOP design with high-impact UV-resistant polyamide construction and a front-mount D-size chassis format, it delivers dependable long-life performance with a latch-lock mechanism and solder contacts to ensure secure termination and stable signal transfer in professional installations.

Ideal for outdoor PA systems stage boxes broadcast rigs and fixed installations exposed to weather and sunlight, it is IP65 rated and TOP approved in consideration to UL50E when mated with related cable or chassis connectors of the XLR TOP range. It maintains sealing both when connected and when disconnected, and complies with IEC 61076-2-103 plus UL94 V-0 flammability, making it a reliable choice for touring production venues and permanent outdoor infrastructure operating from -30C to +80C.

Key Features

  • 3 pole female XLR chassis connector for rugged outdoor audio and signal patching
  • IP65 rated and TOP approved in consideration to UL50E when mated with XLR TOP range for weather protection
  • High-impact UV-resistant polyamide shell and insert with TPE gasket for durable sealing
  • Solder contacts with brass contacts and 0.2um gold over 2um nickel plating for low resistance performance
  • Front mounting D-size chassis with latch lock rated >5000 mating cycles for long service life
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
