> >>>NEUTRIK NC3FXX-BAG FEMALE 3-PIN LINE CONNECTOR BLACK/SILVER PINS
New NEUTRIK NC3FXX-BAG FEMALE 3-PIN LINE CONNECTOR BLACK/SILVER PINS View larger

NEUTRIK

NEUTRIK NC3FXX-BAG FEMALE 3-PIN LINE CONNECTOR BLACK/SILVER PINS

NEUNC3FXX-BAG

NU-NC3FXX-BAG

New product

Balcatta: 0
Geebung: 0

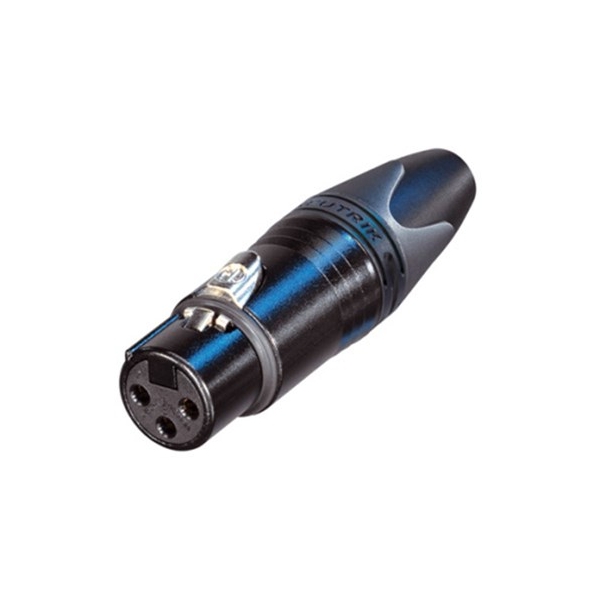

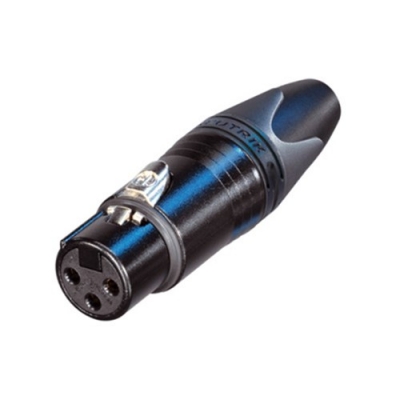

NEUTRIK NC3FXX-BAG 3-Pin Female XLR Cable Connector - Black Housing - Silver Contacts

The NEUTRIK NC3FXX-BAG is a high-quality 3-pole female XLR cable connector designed for dependable microphone, line-level, and professional audio interconnects in touring, studio, and installed sound systems. Featuring a rugged black KTL-coated zinc diecast shell with silver-plated contacts and a unique female cage-contact design, it delivers low contact resistance and high contact integrity for clean, consistent signal transfer.

Ideal for building and repairing pro-audio cables, it uses solder contacts with an integrated solder barrier to keep solder out of the mating area, plus an improved chuck-style strain relief and polyurethane boot gland to protect against pull-out and cable bending stress. Rated 16 A per contact at under 50 V with 1.5 kVdc dielectric strength, UL 94 V-0 flammability, IP40 protection, and IEC 61076-2-103 compliance, it’s a reliable choice for demanding stage and installation environments.

Key Features

  • 3-pole female XLR cable connector with solid metal latch lock for secure, easy handling
  • Electrical performance: ≤3 mΩ contact resistance, ≤4 pF capacitance, 16 A per contact, <50 V rated, 1.5 kVdc dielectric strength, >10 GΩ insulation (initial)
  • Rugged build: zinc diecast shell with black KTL coating and 2 µm silver-plated bronze (CuSn8) contacts for long-lasting conductivity
  • Pro assembly and durability: solder contacts with solder barrier, improved chuck strain relief, polyurethane boot gland, >1000 mating cycles, 3.5–8.0 mm cable O.D., up to 2.5 mm² (14 AWG)
  • Standards and environment: IEC 61076-2-103 compliant, UL 94 V-0, IP40, -30 °C to +80 °C operating range
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
