> >>>NEUTRIK NA3FDM 3-POLE CHASSIS XLR MALE TO FEMALE FEEDTHROUGH
New NEUTRIK NA3FDM 3-POLE CHASSIS XLR MALE TO FEMALE FEEDTHROUGH View larger

NEUTRIK

NEUTRIK NA3FDM 3-POLE CHASSIS XLR MALE TO FEMALE FEEDTHROUGH

NEUNA3FDM

NU-NA3FDM

New product

Balcatta: 0
Geebung: 0

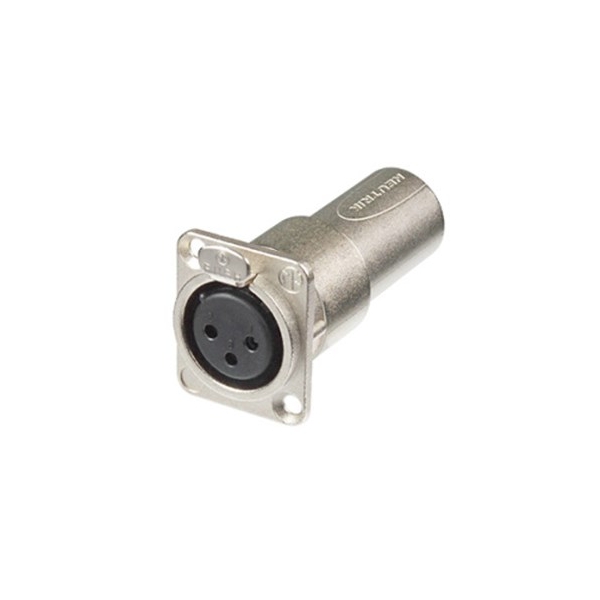

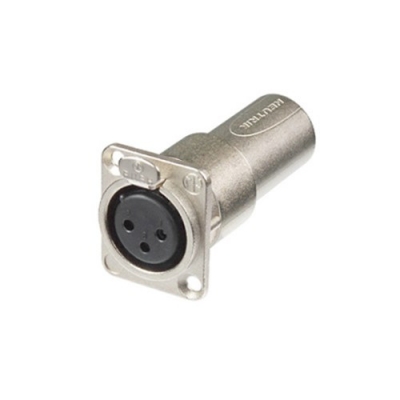

NEUTRIK NA3FDM 3-pole XLR Female to Male Feedthrough D-flange Chassis Mount

The NEUTRIK NA3FDM is a professional-grade 3-pole XLR female-to-male feedthrough adapter designed for clean, reliable panel mounting in audio, broadcast, and AV patching applications. Built in a D-shape chassis format with latch-lock retention, it provides a secure pass-through connection while supporting solder-contact wiring for dependable long-term performance.

Ideal for rack panels, wall plates, stage boxes, and equipment enclosures, it features a rugged zinc diecast shell with nickel plating, a durable polyamide insert, and silver-plated contacts for low resistance signal transfer. With up to 16 A per contact, <50 V rating, IEC 61076-2-103 compliance, and a -30 °C to +80 °C operating range, it delivers dependable connectivity in professional environments.

Key Features

  • 3-pole XLR female-to-male feedthrough adapter for panel mount patching and pass-through wiring
  • Zinc diecast shell with nickel plating and steel locking element for durability and secure latching
  • Solder contacts support up to 2.5 mm² (14 AWG) wiring for robust installation builds
  • Electrical performance: ≤ 5 mΩ contact resistance, ≤ 4 pF capacitance, 1.5 kVdc dielectric strength, > 2 GΩ insulation resistance
  • Long-life design rated > 1000 mating cycles with IP40 protection class for installed systems
  • PRODUCT TYPE CONNECTORS
  • COLOR SILVER
