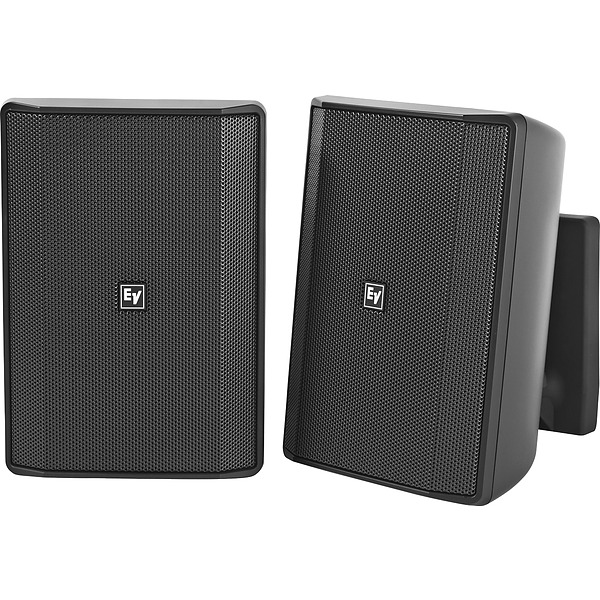

5” Wall Mount Speaker (Pair) - 75 Watt View larger

5” Wall Mount Speaker (Pair) - 75 Watt

EV EVID-S 5.2TB

New product

5” Wall Mount Speaker (Pair) - 75 Watt

More details

Totally Sound Bunbury 9725 4599 www.totallysound.com.au
PAV – Sales and Install Bayswater 9378 0888 www.pav.com.au/shop
Power Music Productions Claremont 9385 6996 www.powermusic.com.au
Lux Events Belmont 9202 1800 www.luxevents.com.au
Advanced Production Engineering Claremont 0487 465 597 www.apengineering.com.au
Stage & Studio Productions East Vic Park 6161 9704 www.stageandstudio.com.au

The EVID-S5.2T from Electro-Voice is a highperformance, two way, full-range, 5.25" (133 mm) surface mount speaker with excellent wide, uniform coverage, and outstanding performance. It is designed for background and foreground music, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.

With unparalleled ease of installation, sturdy weather resistance, modern and delicate look, and its flexible mounting options, the EVID-S5.2T is the perfect solution for a wide variety of surface mount applications.

The EVID-S5.2T includes the unique and innovative mounting system, from Electro-Voice, making every installation quick, simple, and reliable. The mounting system allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used, ready to make any job easier.

The EVID-S5.2T utilizes a 30 W transformer, that offers a selection of 3.7 W (70 V only), 7.5 W, 15 W, or 30 W delivered to the speaker system using either 70 V or 100 V lines, or 8 Ω bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker.

The EVID-S5.2T has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The full range speaker is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture.

All EVID-S models are available in black or white, and can be easily painted to match the décor. Transformer versions are also available for constant voltage systems.

The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in wall speakers.

Features

  • Innovative mount system is included for quick, simple, and reliable installations
  • Carefully engineered for outdoor environments (IP54), without compromising performance
  • Long throw 5.25" (133 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 60 Hz
  • Colour Black
  • Dimensions (H x W x D) 255 x 180 x 151 mm
  • Frequency Response 60 Hz – 20 kHz1 (-10 dB)
  • Impedance 8 ohm
  • Maximum SPL 109 dB
  • Power Rating 75 watt (RMS) 300 watt (Peak)
  • Sensitivity 90 dB
  • Transformer Taps 7.5 , 15 , 30 Watt & 8 Ohm
  • Warranty 3 Years
  • Weight 2.7 kg
