DYNACORD PCL 1240T
New product
Power Amplifier 400 watt x 2
Warning: Last items in stock!
Availability date: 04/18/2024
3 Monkeys Audiovisual | West Perth | 9228 1681 | www.3monkeysav.com |
AV Media Systems (W.A.) | Osborne Park | 1300 302 884 | www.avsystems.com.au |
Stage & Studio Productions | East Vic Park | 6161 9704 | www.stageandstudio.com.au |
PAV – Sales and Install | Bayswater | 9378 0888 | www.pav.com.au/shop |
Totally Sound | Bunbury | 9725 4599 | www.totallysound.com.au |
P.S.I Audio | Mandurah | 0438 778 832 | www.psiaudio.com.au |

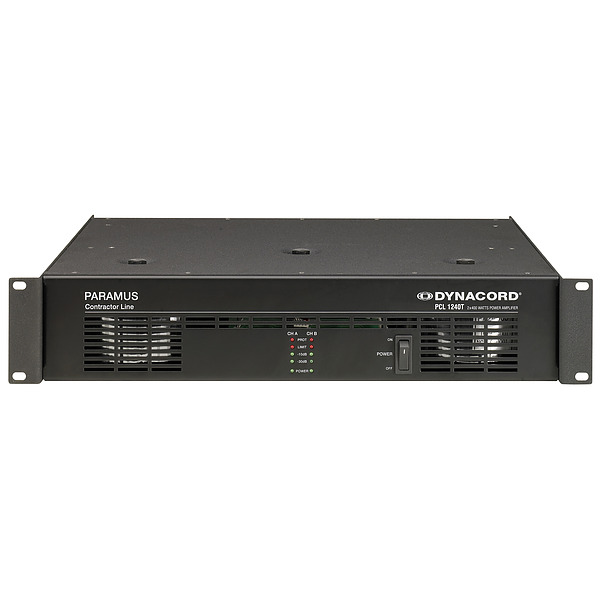

The DYNACORD PCL-Series power amp line combines outstanding audio performance, exceptional reliability and secure operational safety in a compact 2RU chassis design.
All models in the PCL-Series provide several protection circuits which not only prevent the power amplifier itself but also the connected loudspeaker systems from being damaged. These protections include Dynamic Audio Limiters, Inrush Current Limiter, Short Circuit Protection and Thermal Overload Protection.
All PCL-Series power amps feature different hi-pass filters with switch selectable cut-off frequency to attenuate unwanted low-frequency signals. Infinitely variable low-noise high performance fans guarantee absolute thermal stability while keeping fan noise to a minimum. Direct “flow-thru” chassis design allows for a smooth flow of air from front-to-rear, which allows trouble-free operation even in smaller amp-racks. Compact high density power supply units with low-leakage toroidal transformers provide extensive headroom far above the listed power rating.

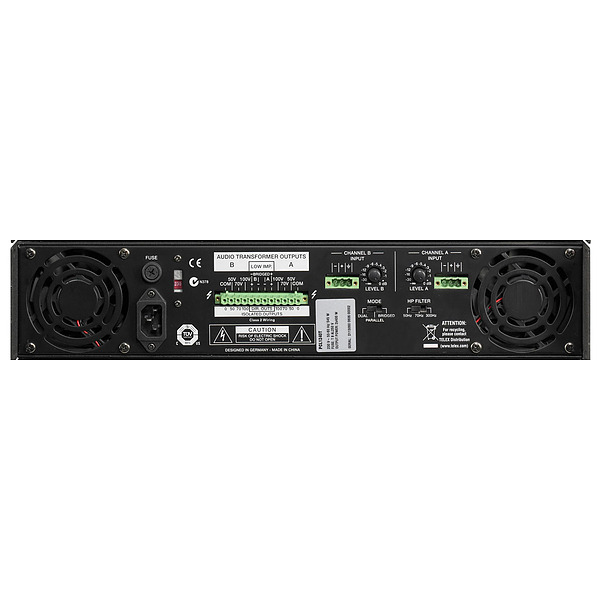

Premium phoenix style screw-lock connectors prevent accidental disconnection resulting in a more secure connection of audio signal and speaker cables. All PCL-Series “T” version models are equipped with high performance output transformers also provide floating outputs for 50V, 70V and 100V installations.
These models also provide voltage limiters to protect the loudspeaker outputs against overvoltage.
|
|
|
