> >>>ELECTRO VOICE EVL-EVID-P6.2B EVID-P 6.5" 2-WAY 100V LINE 30W 8 OHM PENDANT SPEAKER BLACK
6.5" Pendant Speaker - Black View larger
Previous Next

ELECTRO VOICE

ELECTRO VOICE EVL-EVID-P6.2B EVID-P 6.5" 2-WAY 100V LINE 30W 8 OHM PENDANT SPEAKER BLACK

ELEEVID-P6.2B

EVL-EVID-P6.2B

New product

EV 6.5" PENDANT SPEAKER - BLACK

More details

Balcatta: 0
Geebung: 0

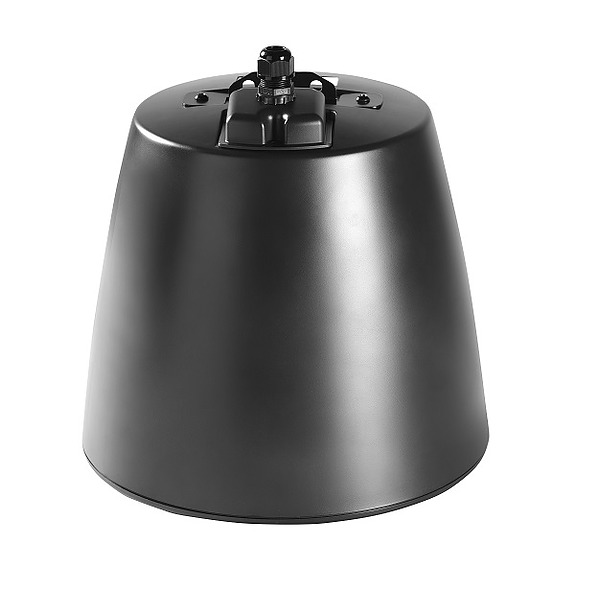

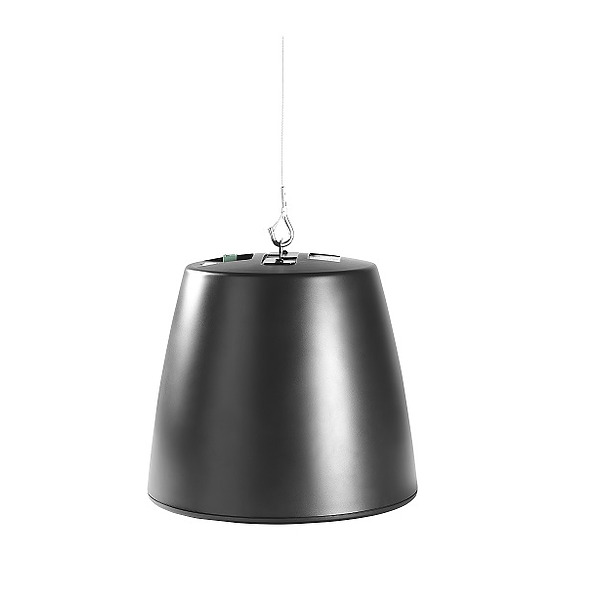

ELEEVID-P6.2B Electro-Voice 6.5-Inch Coaxial Pendant Speaker 70/100 V - Black

The Electro-Voice EVID-P6.2B is a black 6.5-inch coaxial two-way pendant loudspeaker with a titanium-dome tweeter, passive crossover and internal line-matching transformer. Its ported, internally damped cabinet provides an integrated pendant audio solution for professional installations.

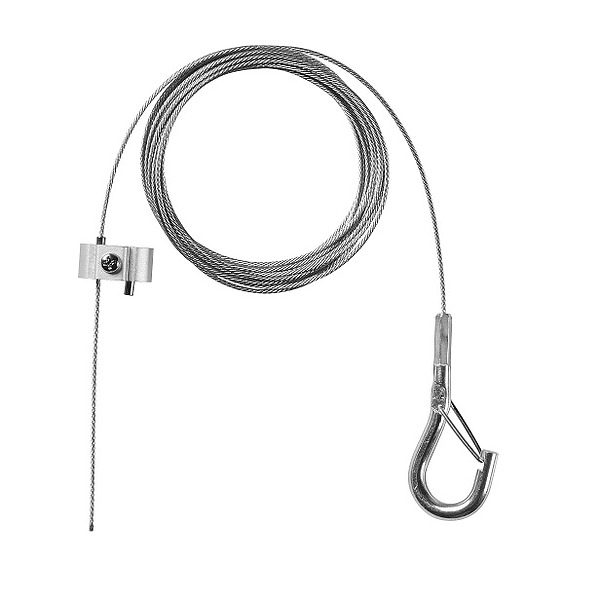

Suitable for indoor and protected outdoor installations, the loudspeaker uses a UL 94V-0-rated ABS enclosure and baffle with a semi-gloss black powder-coated steel grille. The supplied 4.57 m steel-wire suspension cable has a 10 kg working load limit, providing a clearly defined mounting solution for pendant applications.

Key Features

  • Rated 60 Hz to 20 kHz response supports wide-range reproduction of music and voice
  • 115° conical coverage provides broad sound dispersion from a suspended position
  • 75 W power handling at 8 ohms supports capable low-impedance system output
  • Transformer taps up to 30 W accommodate 70 V and 100 V distributed-audio layouts
  • Pass-through wiring supports efficient onward connection to additional loudspeakers
  • Colour Black
  • Coverage (H x V) 115° conical
  • Dimensions (H x W x D) 301 x 310mm
  • Frequency Response 60 Hz - 20 kHz
  • Impedance 8 ohm
  • Power Rating 75 Watt @ 8 ohm
  • Sensitivity 87 dB
  • Transformer Taps 3.7/7.5/15/30 Watt
  • Warranty 3 Years
  • Weight 5.28 kg
  • PRODUCT TYPE PENDANT SPEAKER
  • Brand ELECTRO VOICE
  • Config 2-WAY
  • Driver Size 6.5"
  • Power Type 70V/100V LINE
  • Mount Type PENDANT MOUNTED
  • SPL (DB) 87
  • Dispersion Angle 115

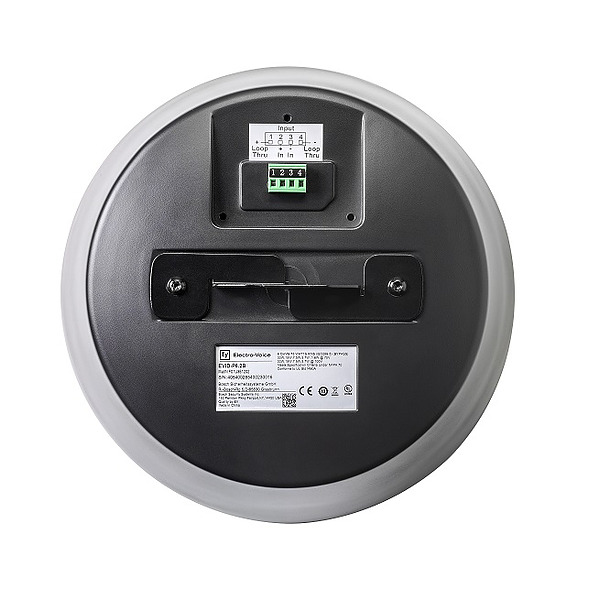

  • Input Connector 4-PIN TERMINAL BLOCK
  • Weight (kg) 5.28 KG
  • HF Driver Size 1"
  • LF Driver Size 6.5"
  • Enclosure ABS BAFFLE
  • Hertz 60-20000HZ
  • Max Wattage 75W
  • Max 100V Tap (W) 30W
  • 100V Taps List 3.7W;7.5W;15W;30W
  • Max 70V Tap (W) 30W
  • 70V Taps List 1.8W;3.7W;7.5W;15W;30W
  • Dia (mm) 310
  • Series EVID-P
