> >>>TOA PC668RCBK COAXIAL 100V LINE 15W CEILING SPEAKER BLACK
New TOA PC-668RC-AS BK 8 INCH 15W 100V CEILING SPEAKER BLACK View larger

TOA ELECTRONICS

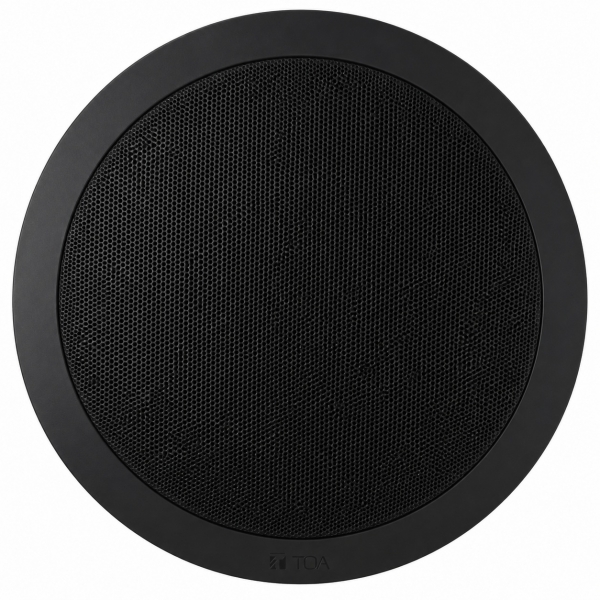

TOA PC668RCBK COAXIAL 100V LINE 15W CEILING SPEAKER BLACK

TOAPC668RCBK

PC668RCBK

New product

Balcatta: 0
Geebung: 0

PC-668RC-AS BK TOA 15W 100V Ceiling Speaker - Black

The PC-668RC-AS BK is a 15 W TOA ceiling speaker variant for 100 V and 70 V line systems. The supplied PC-668RC-AS datasheet confirms an integrated ceiling mount speaker design with a resin panel, speaker frame and 20 cm double cone-type speaker.

A spring clamp mechanism supports straightforward ceiling mounting, while the push-in connector allows bridging and branch wiring. Transformer tap adjustment lets installers set input impedance for the system, making the speaker practical for distributed commercial audio layouts.

Key Features

  • 15 W ceiling speaker design supports paging and background music applications
  • Double cone speaker component provides broad-range ceiling audio coverage
  • Spring clamp mounting helps simplify installation into ceiling cut-outs
  • Push-in connector supports efficient wiring, including bridging and branch connections
  • Transformer tap adjustment helps match the speaker to 100 V or 70 V line systems
  • Colour Black
  • Sensitivity 90 dB
  • Warranty 3 Years
  • PRODUCT TYPE CEILING SPEAKER
  • COLOR BLACK
  • Brand TOA
  • Config COAXIAL
  • Power Type 100V LINE
  • Mount Type CEILING MOUNTED
  • LF Driver Size 8"
  • Max SPL (dB) 105 DB
  • Hertz 65-20000HZ
  • Max Wattage 15W
  • Max 100V Tap (W) 15W
  • Max 70V Tap (W) 15W
  • Pair SINGLE
  • Dia (mm) 280
