> >>>TOA CM760 FULL RANGE 100V LINE 15W CEILING SPEAKER WHITE
New TOA CM-760 4 INCH 6W 100V FLUSH MOUNT CEILING SPEAKER NO GRILLE View larger

TOA ELECTRONICS

TOA CM760 FULL RANGE 100V LINE 15W CEILING SPEAKER WHITE

TOACM760

CM760

New product

Balcatta: 0
Geebung: 0

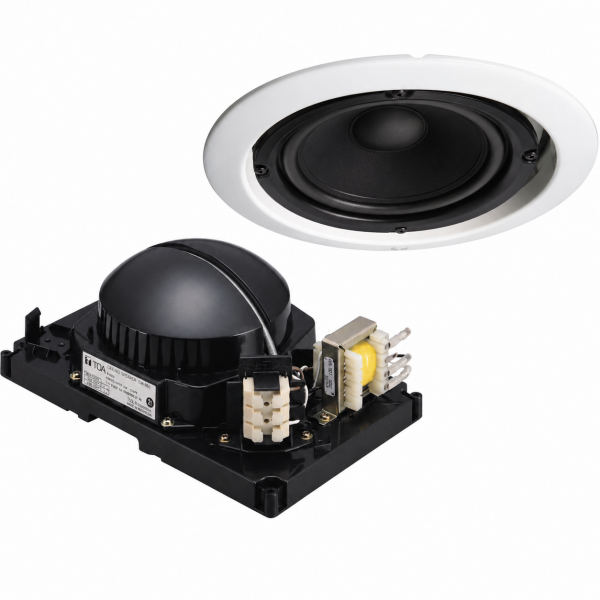

CM-760 TOA 6W 100V Flush-Mount Ceiling Speaker - No Grille

The CM-760 is a 6 W TOA ceiling speaker for 100 V line systems, using a 12 cm dynamic cone-type speaker. It is designed as a grille-separation type model with optional CP-70 series panels, including CP-73 and CP-77, allowing the front panel to be matched to the installation.

The push-in connector supports fast cable termination and allows bridging or branch wiring where the system layout requires it. A hard speaker cover protects the unit above the ceiling, and the coil spring catch method helps the selected panel attach neatly to the speaker.

Key Features

  • Separate-panel format keeps the visible grille choice independent from the speaker body
  • 6 W 100 V configuration suits distributed ceiling speaker installations
  • Push-in connection simplifies wiring work at the ceiling position
  • Branch and bridging connection support helps accommodate practical cable layouts
  • Compatible with optional CP-73 and CP-77 panels for CP-70 series finish options
  • Colour White
  • Sensitivity 90 dB
  • Warranty 3 Years
  • PRODUCT TYPE CEILING SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Config FULL RANGE
  • Power Type 100V LINE
  • Mount Type CEILING MOUNTED
  • Max Wattage 6W
  • Max 100V Tap (W) 15W
  • Max 70V Tap (W) 15W
  • Unit Dimensions (mm) 140H x 200W x 94D
  • Pair SINGLE
