> >>>ELECTRO-VOICE EVA-2082S/906 2X8 INCH LINE ARRAY MODULE 90° X 6° PASSIVE BLACK

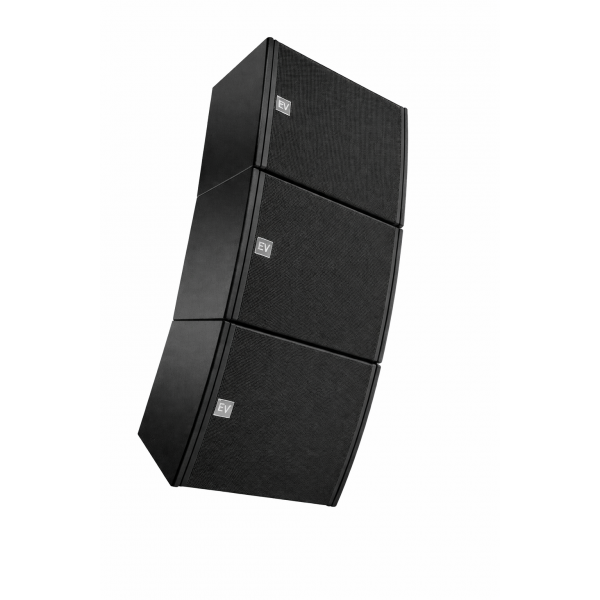

Full Range Dual Element Line Array Module - Indoor View larger

ELECTROVOICE

ELECTRO-VOICE EVA-2082S/906 2X8 INCH LINE ARRAY MODULE 90° X 6° PASSIVE BLACK

ELEEVA-2082S/906-BLK

EVA-2082S/906-BLK

New product

EV FULL RANGE DUAL ELEMENT LINE ARRAY MODULE

More details

Balcatta: 0
Geebung: 0

ELEEVA-2082S/906-BLK Electro-Voice EVA-2082S/906 Dual 8 Inch Passive Line Array Module 90 x 6 Black - Single

The ELEEVA-2082S/906-BLK is a high-quality full-range line array module designed for fixed-install sound reinforcement. Measuring 20.25 x 23.50 x 14.10 in, it features a rugged plywood enclosure with EVCoat and hidden integrated suspension to ensure precise 90 x 6 pattern control, clean sightlines, and consistent coverage.

Ideal for churches auditoriums arenas and performance venues, it complies with IEC 60529 IP55 weather resistance when specified in PI or FG versions and offers Phoenix EuroBlock connectivity, single-amplifier array drive, and advanced HF protection, making it reliable and easy to deploy in demanding installations.

Key Features

  • 60 Hz–19 kHz response 104 dB sensitivity 350 W continuous 1400 W peak with max SPL to 135 dB for powerful intelligible audio
  • Plywood cabinet with EVCoat and 16 GA powder-coated galvanneal grille for long-term durability
  • Dual EVS2008 8 in woofers plus four DH2005 1.25 in compression drivers with 6th-order crossover and HF protection
  • 90 x 6 coverage nominal 16 Ω impedance recommended 50 Hz high-pass and IEC 60529 IP55 for PI FG versions
  • Supplied as a single black module with Phoenix EuroBlock terminals EVA grid suspension sold separately
  • Colour Black
  • Coverage (H x V) 90 ° x 6 °
  • Dimensions (H x W x D) 514.4 x 596.9 x 358.2 mm
  • Frequency Response 45 - 20000 Hz (-10 dB)
  • Impedance 16 ohm
  • Material Plywood with EVCoat
  • Maximum SPL 135 dB
  • Power Rating 350 watt (RMS) 1400 watt (Peak)
  • Sensitivity 104 dB
  • Warranty 5 Years
  • Weight 37.1 Kg
  • PRODUCT TYPE PASSIVE SPEAKER
  • COLOR BLACK
