> >>>ELECTRO-VOICE EVA-2082S/920 2X8 INCH LINE ARRAY MODULE 90° X 20° PASSIVE BLACK

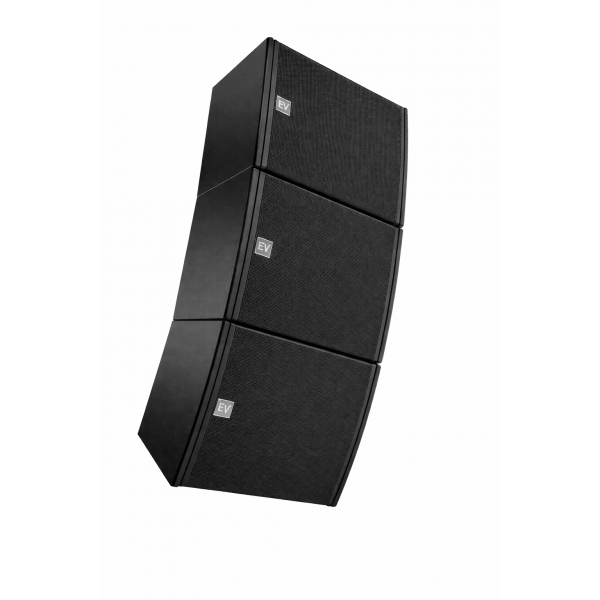

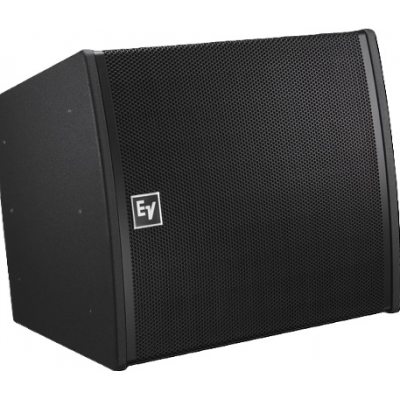

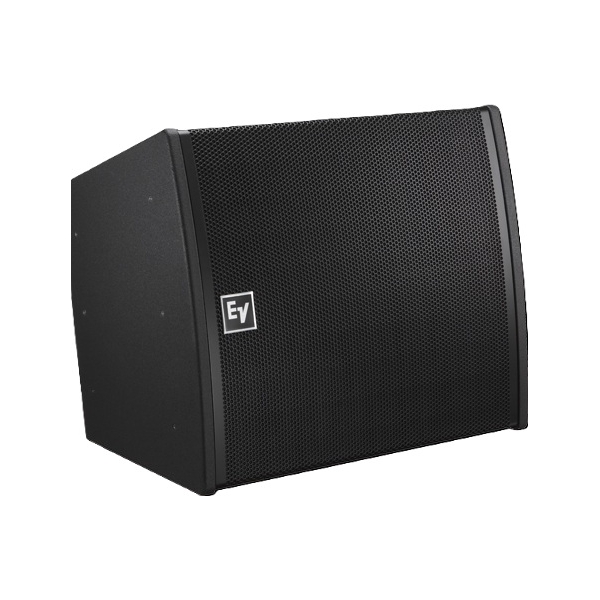

New ELECTRO-VOICE EVA-2082S/920 2X8 INCH LINE ARRAY MODULE 90° X 20° PASSIVE BLACK View larger

ELECTROVOICE

ELECTRO-VOICE EVA-2082S/920 2X8 INCH LINE ARRAY MODULE 90° X 20° PASSIVE BLACK

ELEEVA-2082S/920-BLK

EVA-2082S/920-BLK

New product

Balcatta: 0
Geebung: 0

ELEEVA-2082S/920-BLK Electro-Voice EVA-2082S/920 Dual 8 Inch Passive Line Array Module 90 x 20 Black - Single

The ELEEVA-2082S/920-BLK is a high-quality full-range passive line array module designed for fixed-install sound reinforcement where wide 90 degree by 20 degree coverage is required. Measuring 20.17 x 23.50 x 14.53 in, it features a rugged plywood enclosure with EVCoat and hidden integrated rigging to ensure reliable performance, clean sightlines, and consistent pattern control.

Ideal for churches auditoriums arenas and multipurpose venues, it complies with IEC 60529 IP55 weather-resistance in PI and FG versions and offers Phoenix EuroBlock connectivity and advanced HF protection, making it easy to deploy and maintain in demanding indoor or weatherized installations.

Key Features

  • 60 Hz–19 kHz response 45 Hz–20 kHz range 104 dB sensitivity and 350 W continuous 1400 W peak for high output and clarity
  • Plywood cabinet with EVCoat and 16 GA powder-coated galvanneal grille engineered for durability
  • Dual EVS2008 8 in woofers plus four DH2005 1.25 in compression drivers with 1740 Hz crossover and 6th order HF protection
  • 90 x 20 coverage nominal 16 Ohm impedance IEC 60529 IP55 rating for PI and FG versions
  • Supplied as a single black module with Phoenix EuroBlock terminals EVA grid suspension sold separately
  • PRODUCT TYPE PASSIVE SPEAKER
  • COLOR BLACK
