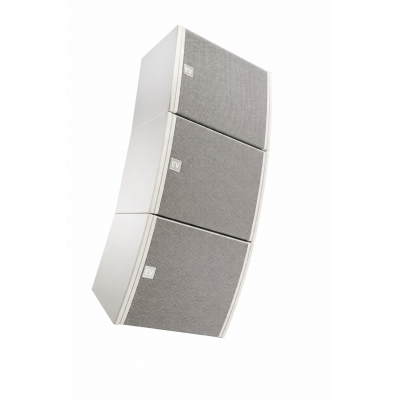

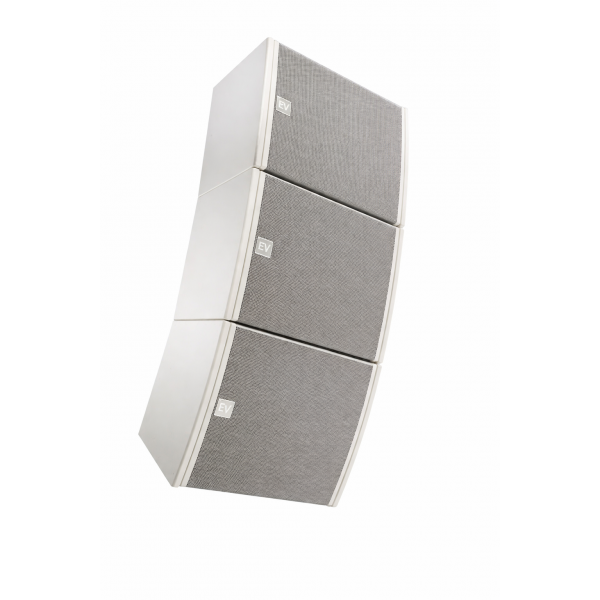

> >>>ELECTRO-VOICE EVA-2082S/906 WHITE 2X8 INCH PASSIVE LINE ARRAY MODULE 90° X 6°
New ELECTRO-VOICE EVA-2082S/906 WHITE 2X8 INCH PASSIVE LINE ARRAY MODULE 90° X 6° View larger

ELECTROVOICE

ELECTRO-VOICE EVA-2082S/906 WHITE 2X8 INCH PASSIVE LINE ARRAY MODULE 90° X 6°

ELEEVA-2082S/906-WHT

EVA-2082S/906-WHT

New product

Balcatta: 0
Geebung: 0

ELEEVA-2082S/906-WHT Electro-Voice EVA-2082S/906 2x8 Inch Line Array Module 90 x 6 White - Single Module

The ELEEVA-2082S/906-WHT is a high-quality dual 8 inch passive full-range line array module designed for fixed-install sound reinforcement in churches theaters arenas and performance venues. Measuring 20.25 x 23.50 x 14.10 in it features a plywood enclosure with EVCoat finish hidden suspension hardware and a 16 GA powder-coated galvanneal grille to ensure clean aesthetics rugged durability and reliable long-term performance.

Ideal for medium to large venues requiring precise coverage it complies with EVA rigging practices and offers 90 degree horizontal by 6 degree vertical directivity 60 Hz–19 kHz response 104 dB sensitivity and 350W continuous 1400W peak power handling from a 16 ohm load with dual 4-contact Phoenix Euroblock connectors making it suitable for architecturally discreet arrays driven from a single amplifier channel and scalable with matching EVA subwoofers and grids.

Key Features

  • Dual EVS2008 8 inch woofers plus four DH2005 1.25 inch compression drivers deliver 129 dB continuous 135 dB peak SPL
  • Plywood cabinet with EVCoat and 16 GA powder-coated steel grille for robust install-grade construction
  • Hidden integrated suspension works with EVA grids for fast safe rigging and accurate aiming
  • Advanced 6th order passive crossover with HF protection for smooth response and reliability
  • White indoor finish single module optimized for use with EVA-SG2 or EVA-EG2 grids and EVA-GXB spreader
  • PRODUCT TYPE PASSIVE SPEAKER
  • COLOR WHITE
