> >>>HH LA8D PRINCE 2X8" 2-WAY LINE ARRAY PASSIVE 400W 16 OHM BRACKET MOUNT PASSIVE LINE ARRAY LOUDSPEAKER BLACK

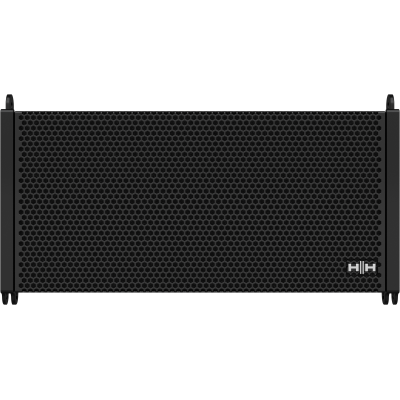

HH PRINCE SERIES LA8D BLACK 2X8 INCH 2-WAY PASSIVE LINE ARRAY SPEAKER View larger

HH LA8D PRINCE 2X8" 2-WAY LINE ARRAY PASSIVE 400W 16 OHM BRACKET MOUNT PASSIVE LINE ARRAY LOUDSPEAKER BLACK

HHALA8D

LA8D

New product

Balcatta: 0
Geebung: 0

HHALA8D HH Electronics LA8D Dual 8-Inch Passive 2-Way Line Array Loudspeaker - Black

The HH Electronics Prince Series LA8D is a passive 2-way line array loudspeaker combining two 8-inch mid-low drivers with a 2-inch high-frequency compression driver. Its magnesium-alloy HF diaphragm supports an 80 Hz to 18 kHz frequency response and maximum output of 134 dB SPL peak for theatres, live music venues, corporate AV events and fixed installations.

Symmetrical phase alignment and HH phase-plug technology provide controlled sound distribution across a 120° horizontal by 10° vertical coverage pattern. The black painted plywood enclosure includes a 3-point rigging system for linking and splaying multiple cabinets and is designed to pair with the HH S15-H sub enclosure.

Key Features

  • Covers broad audience areas while controlling vertical spill through its defined dispersion pattern
  • Improves coupling efficiency between the dual mid-low drivers through symmetrical phase alignment
  • Maintains precise high-frequency directionality through the neodymium compression driver and HH phase plug
  • Supports portable events and permanent venue systems with a compact 16 kg cabinet
  • Withstands repeated professional use through robust plywood construction and a wear-resistant finish
  • Colour Black
  • Impedance 16 ohm
  • Sensitivity 102 DB
  • Warranty 2 Years
  • PRODUCT TYPE PASSIVE LINE ARRAY LOUDSPEAKER
  • COLOR BLACK
  • Brand HH
  • Config 2-WAY LINE ARRAY
  • Driver Size 2x8"
  • Power Type PASSIVE
  • Mount Type BRACKET MOUNT
  • SPL (DB) 128
  • Dispersion Angle 120H x 10V
  • Voice Coil Size 2"
  • Input Connector 2 x SPEAKON NL4
  • Enclosure PLYWOOD
  • Max SPL (dB) 134 DB
  • Hertz 80-18000HZ
  • Max Wattage 400W
  • Unit Dimensions (mm) 240H x 520W x 390D
  • Series PRINCE
  • Arrayable Yes
