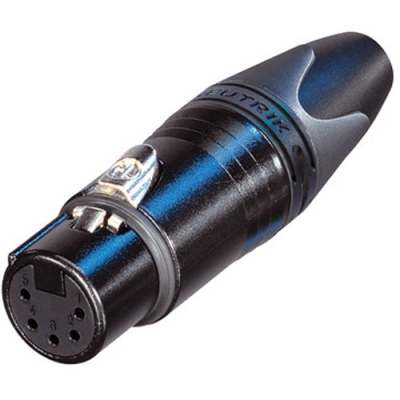

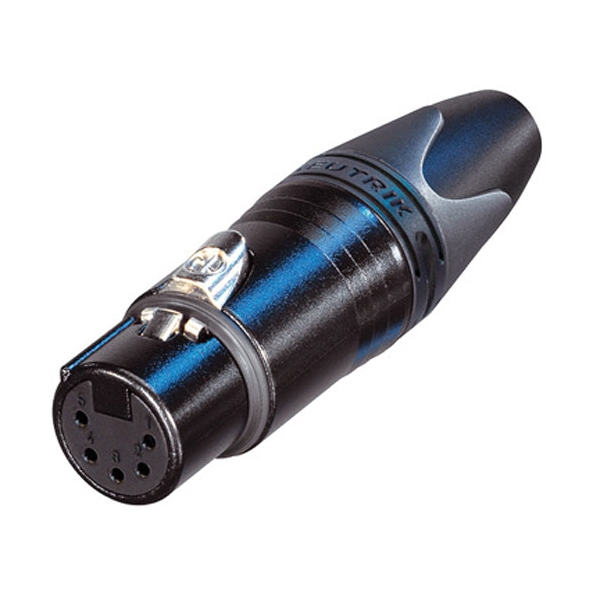

NEUTRIK NC5FXX-B 5 PIN XLR FEMALE CABLE CONNECTOR GOLD CONTACTS BLACK

Product Code: NEUNC5FXX-B

Supplier SKU: NU-NC5FXX-B

Condition: New product

NEUTRIK 5 PIN FEMALE CABLE CONNECTOR BLACK

More details

Balcatta: 0

Geebung: 0

More info
Specifications

Neutrik NU-NC5FXX-B 5-Pin XLR Female Cable Connector Black

The NU-NC5FXX-B is a professional 5-pole XLR female cable connector designed for reliable audio and data interconnects in touring sound, broadcast, studio, and install applications. Built with a rugged black KTL-coated zinc diecast shell, brass contacts with 0.2 µm hard-gold plating over nickel, and a durable polyurethane boot, it delivers low contact resistance (≤ 3 mΩ), strong dielectric strength (1.5 kVdc), and long service life (> 1000 mating cycles).

Ideal for building and repairing high-performance XLR cables, it supports solder termination and accepts cable outside diameters from 3.5 to 8.0 mm with an improved chuck-style strain relief for higher pull-out force and better bend protection. Compliant with IEC 61076-2-103 and UL 94 V-0, rated 7.5 A per contact at < 50 V, and specified for -30 °C to +80 °C operation with IP40 protection, it’s a dependable choice for commercial-grade signal connections where durability, grounding continuity, and secure latching matter.

Key Features

5-pole XLR female cable connector with solder contacts and solid metal latch lock for secure mating
Gold-plated brass contacts and unique cage contact design for low resistance and high contact integrity
Black KTL-coated zinc diecast housing with additional ground spring contacts for improved shell grounding continuity
IEC 61076-2-103 compliant UL 94 V-0 rated IP40 rated 7.5 A per contact < 50 V -30 °C to +80 °C
Chuck-type strain relief for 3.5-8.0 mm cable OD plus polyurethane boot gland to reduce bending stress
