> >>>ELECTRO VOICE EVL-EVID-S4.2TW EVID-S 4" 2-WAY FULL RANGE 100V LINE 15W IP54 WALL/CEILING MOUNT SURFACE MOUNT SPEAKER PAIR WHITE
New ELECTRO VOICE EVL-EVID-S4.2TW EVID-S 4" 2-WAY FULL RANGE 100V LINE 15W IP54 WALL/CEILING MOUNT SURFACE MOUNT SPEAKER PAIR WHITE View larger

ELECTRO VOICE

ELECTRO VOICE EVL-EVID-S4.2TW EVID-S 4" 2-WAY FULL RANGE 100V LINE 15W IP54 WALL/CEILING MOUNT SURFACE MOUNT SPEAKER PAIR WHITE

ELEEVID-S-4.2TW

EVL-EVID-S4.2TW

New product

Balcatta: 0
Geebung: 0

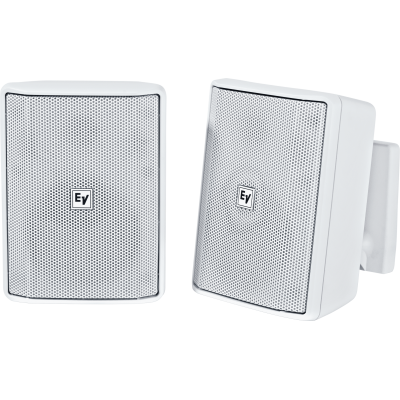

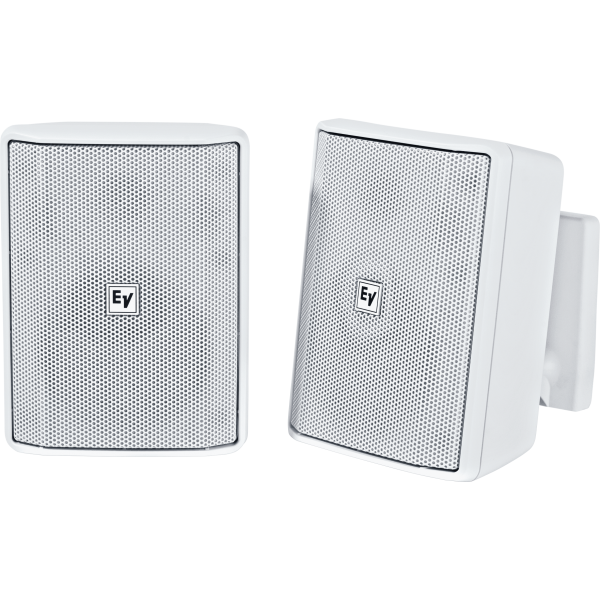

ELEEVID-S-4.2TW Electro-Voice 4-Inch Two-Way Surface-Mount Speakers 70/100 V - White Pair

The Electro-Voice EVID-S4.2TW is supplied as a pair of white 4-inch two-way full-range surface-mount loudspeakers for 70 V and 100 V distributed audio systems. Each unit combines a weather-resistant polypropylene-cone woofer with a 20 mm ferrofluid-cooled high-frequency driver and an internal passive crossover.

Designed for IP54-rated indoor and outdoor applications, the speakers suit background and foreground music, paging and sound reinforcement across hospitality, retail, fitness and leisure venues. The included ball-and-socket mounting system supports wall or ceiling installation with 90° horizontal and 45° vertical adjustment while keeping wiring concealed.

Key Features

  • 100 Hz to 20 kHz frequency response supports wide-range installed audio reproduction
  • 110° horizontal and vertical coverage promotes even sound distribution across the listening area
  • Selectable transformer taps up to 15 W provide flexibility for 70 V and 100 V system design
  • Paintable RAL 9003 white finish helps coordinate the speakers with surrounding decor
  • Compact 193 mm x 140 mm x 118 mm cabinet and 1.8 kg weight support unobtrusive placement
  • Colour White
  • IP Rating IP54
  • Sensitivity 86.5 DB
  • Warranty 3 Years
  • PRODUCT TYPE SURFACE MOUNT SPEAKER
  • Brand ELECTRO VOICE
  • Config 2-WAY FULL RANGE
  • Driver Size 4"
  • Power Type 70V/100V LINE
  • Mount Type WALL/CEILING MOUNT
  • SPL (DB) 98.5
  • Dispersion Angle 110H X 110V
  • Voice Coil Size 1"
  • Input Connector CAPTIVE SCREWS ON WALL BRACKET
  • Peak Power (W) 60W
  • Weight (kg) 1.8 KG
  • HF Driver Size 0.75"
  • LF Driver Size 4"
  • Enclosure FIRE RATED ABS PLASTIC
  • Max SPL (dB) 104.5 DB
  • Hertz 100-20000HZ (-10dB)
  • Max Wattage 15W
  • Max 100V Tap (W) 15W
  • 100V Taps List 7.5W; 15W
  • Max 70V Tap (W) 15W
  • 70V Taps List 3.7W; 7.5W; 15W
  • Unit Dimensions (mm) 193H x 140W x 118D
  • Pair PAIR
  • Program Power (W) 15W
  • Series EVID-S
