> >>>TOA F2352SCEN F-SERIES 5" 2-WAY WIDE RANGE 100V/70V LINE/8OHM 6W 8 OHM WIDE DISPERSION CEILING SPEAKER WHITE

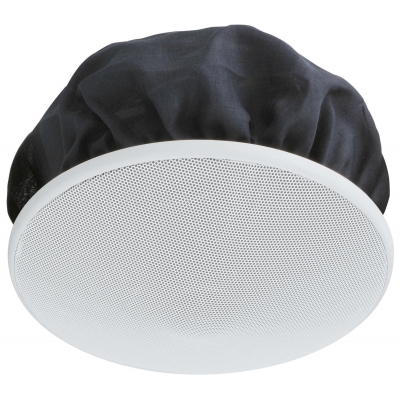

TOA F2352SCEN 5" 2-WAY 100V LINE 8 OHM CEILING SPEAKER WHITE View larger

TOA

TOA F2352SCEN F-SERIES 5" 2-WAY WIDE RANGE 100V/70V LINE/8OHM 6W 8 OHM WIDE DISPERSION CEILING SPEAKER WHITE

TOAF2352SCEN

F2352SCEN

New product

Balcatta: 0
Geebung: 0

TOAF2352SCEN TOA F-2352SCEN EN 54-24 Wide Dispersion Ceiling Speaker - 6 W White

The TOA F-2352SCEN is an EN 54-24-certified 2-way ceiling speaker designed to provide balanced audio across a wide listening area. Its 12 cm cone low-frequency driver and balanced-dome high-frequency driver work with a diffuser to broaden treble dispersion, delivering an 80 Hz to 20 kHz frequency response and 89 dB sensitivity.

Rated at 6 W on a 100 V line, the speaker provides selectable 70 V and 100 V transformer taps together with direct 8 Ω operation. A 154 mm mounting depth, Ø135 mm mounting hole and input selector that remains adjustable after installation support efficient commissioning, while the white steel grille and fire-resistant ABS rim create a clean ceiling finish.

Key Features

  • Reduces high-frequency drop-off away from the speaker centre through dedicated diffuser technology
  • Helps maintain natural well-balanced sound across an expanded listening area
  • Accommodates distributed speaker lines and local low-impedance amplification
  • Makes impedance settings easier to verify and change after the speaker has been installed
  • Fits installations with restricted ceiling space through its relatively shallow mounting depth
  • Colour White
  • Impedance 8 ohm
  • Sensitivity 89 dB
  • Warranty 3 Years
  • PRODUCT TYPE WIDE DISPERSION CEILING SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Config 2-WAY WIDE RANGE
  • Driver Size 5"
  • Power Type 100V/70V LINE/8OHM
  • Mount Type CEILING MOUNTED
  • SPL (DB) 89
  • Dispersion Angle 180 / 180 / 60
  • Input Connector INPUT SELECTOR SWITCH
  • Weight (kg) 1.5 KG
  • HF Driver Size 1"
  • LF Driver Size 5"
  • Enclosure STEEL PLATE
  • Hertz 80-20000HZ
  • Max Wattage 30W
  • Max 100V Tap (W) 6W
  • 100V Taps List 6W; 3W; 1W; 0.5W
  • Max 70V Tap (W) 6W
  • 70V Taps List 6W; 3W; 1.5W; 0.5W; 0.25W
  • Dia (mm) 230
  • Program Power (W) 18W
  • Series F-Series
