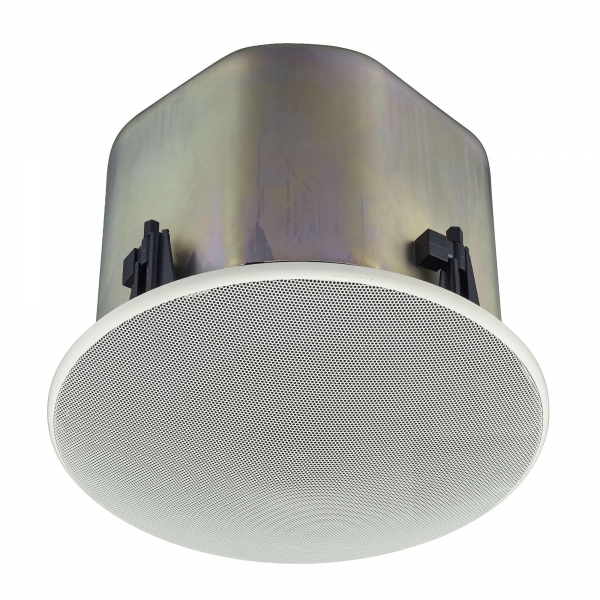

TOA F2852CEN 6.5" 2-WAY 100V/70V LINE/8OHM 60W 8 OHM WIDE DISPERSION CEILING SPEAKER WHITE
TOAF2852CEN
F2852CEN
New product
TOAF2852CEN TOA F-2852CEN EN 54-24 Wide Dispersion Ceiling Speaker - 60 W White
The TOA F-2852CEN is an EN 54-24-certified 2-way ceiling speaker designed for balanced audio coverage in higher-output installations. Its 16 cm cone low-frequency driver and dome tweeter deliver a 60 Hz to 20 kHz frequency response with 91 dB sensitivity, while a dedicated diffuser broadens high-frequency dispersion.
Rated at 60 W on a 100 V line, the speaker offers selectable 70 V and 100 V transformer taps plus direct 8 Ω operation, with 180 W continuous programme handling at 8 Ω. A heat-resistant plated steel back enclosure, fire-resistant ABS baffle and white steel grille support permanent ceiling installation through a Ø250 mm mounting hole.
Key Features
- Reduces treble loss away from the speaker axis through dedicated high-frequency diffusion
- Accommodates distributed 70 V or 100 V lines and direct low-impedance amplification
- Makes impedance settings easier to verify and adjust after ceiling installation
- Protects against excessive input through overload circuitry housed in a heat-resistant enclosure
- Maintains a clean overhead appearance with a white-painted rim and steel grille
- Colour White
- Impedance 8 ohm
- Sensitivity 91 db
- Warranty 3 Years
- PRODUCT TYPE WIDE DISPERSION CEILING SPEAKER
- COLOR WHITE
- Brand TOA
- Config 2-WAY
- Driver Size 6.5"
- Power Type 100V/70V LINE/8OHM
- Mount Type CEILING MOUNTED
- SPL (DB) 91
- Dispersion Angle 90 / 100 / 110
- Weight (kg) 5.1 KG
- LF Driver Size 6.5"
- Enclosure STEEL PLATE
- Hertz 60-20000HZ
- Max Wattage 60W
- Max 100V Tap (W) 60W
- 100V Taps List 60W; 30W; 15W; 3W
- Max 70V Tap (W) 60W
- 70V Taps List 60W; 30W; 15W; 7.5W; 1.5W
- Pair SINGLE
- Dia (mm) 280
- Program Power (W) 180W
- Series F-Series
